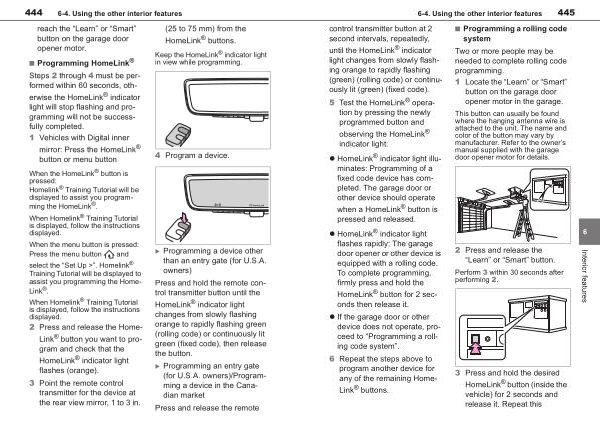

6-4 . Using the other interior features
445 control transmitter button at 2 second intervals , repeatedly ,
until the HomeLink ® indicator light changes from slowly flashing orange to rapidly flashing ( green ) ( rolling code ) or continuously lit ( green ) ( fixed code ).
5 Test the HomeLink ® operation by pressing the newly programmed button and
observing the HomeLink ® indicator light :
• HomeLink ® indicator light illuminates : Programming of a fixed code device has completed . The garage door or other device should operate
when a HomeLink ® button is pressed and released .
• HomeLink ® indicator light flashes rapidly : The garage door opener or other device is equipped with a rolling code . To complete programming , firmly press and hold the
HomeLink ® button for 2 seconds then release it .
• If the garage door or other device does not operate , proceed to “ Programming a rolling code system ”.
6 Repeat the steps above to program another device for any of the remaining Home-
Link ® buttons .
■ Programming a rolling code system
Two or more people may be needed to complete rolling code programming . 1 Locate the “ Learn ” or “ Smart ” button on the garage door opener motor in the garage .
This button can usually be found where the hanging antenna wire is
attached to the unit . The name and color of the button may vary by manufacturer . Refer to the owner ’ s
manual supplied with the garage door opener motor for details .
2 Press and release the “ Learn ” or “ Smart ” button .
Perform 3 within 30 seconds after performing 2 .
3 Press and hold the desired
HomeLink ® button ( inside the vehicle ) for 2 seconds and release it . Repeat this
6
Interior features
