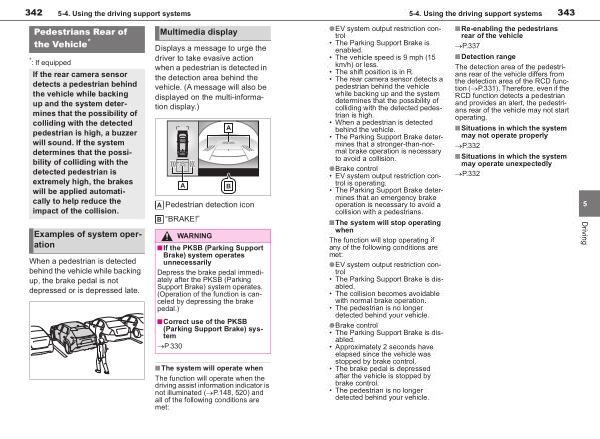

342 5-4 . Using the driving support systems
Pedestrians Rear of the Vehicle *
* : If equipped
If the rear camera sensor detects a pedestrian behind the vehicle while backing up and the system determines that the possibility of colliding with the detected pedestrian is high , a buzzer will sound . If the system determines that the possibility of colliding with the detected pedestrian is extremely high , the brakes will be applied automatically to help reduce the impact of the collision .
Examples of system operation
When a pedestrian is detected behind the vehicle while backing up , the brake pedal is not depressed or is depressed late .
Multimedia display
Displays a message to urge the driver to take evasive action when a pedestrian is detected in the detection area behind the vehicle . ( A message will also be displayed on the multi-information display .)
Pedestrian detection icon “ BRAKE !”
WARNING
■ If the PKSB ( Parking Support Brake ) system operates unnecessarily
Depress the brake pedal immediately after the PKSB ( Parking
Support Brake ) system operates . ( Operation of the function is canceled by depressing the brake
pedal .)
■ Correct use of the PKSB ( Parking Support Brake ) system
�P . 330
■ The system will operate when The function will operate when the driving assist information indicator is
not illuminated ( �P . 148 , 520 ) and all of the following conditions are met :
