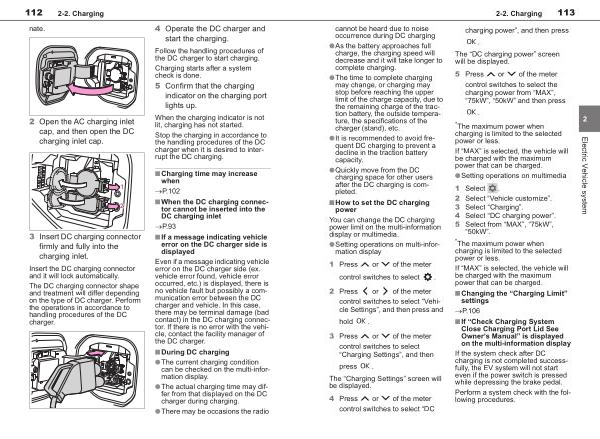

112 2-2 . Charging nate .
2 Open the AC charging inlet cap , and then open the DC charging inlet cap .
3 Insert DC charging connector firmly and fully into the charging inlet .
Insert the DC charging connector and it will lock automatically .
The DC charging connector shape and treatment will differ depending
on the type of DC charger . Perform the operations in accordance to handling procedures of the DC
charger .
4 Operate the DC charger and start the charging .
Follow the handling procedures of the DC charger to start charging .
Charging starts after a system check is done .
5 Confirm that the charging indicator on the charging port lights up .
When the charging indicator is not lit , charging has not started .
Stop the charging in accordance to the handling procedures of the DC
charger when it is desired to interrupt the DC charging .
■ Charging time may increase when
�P . 102
■ When the DC charging connector cannot be inserted into the DC charging inlet
�P . 93
■ If a message indicating vehicle error on the DC charger side is displayed
Even if a message indicating vehicle
error on the DC charger side ( ex . vehicle error found , vehicle error occurred , etc .) is displayed , there is
no vehicle fault but possibly a communication error between the DC
charger and vehicle . In this case , there may be terminal damage ( bad contact ) in the DC charging connector . If there is no error with the vehicle , contact the facility manager of the DC charger .
■ During DC charging
●The current charging condition can be checked on the multi-information display .
●The actual charging time may differ from that displayed on the DC charger during charging .
●There may be occasions the radio
