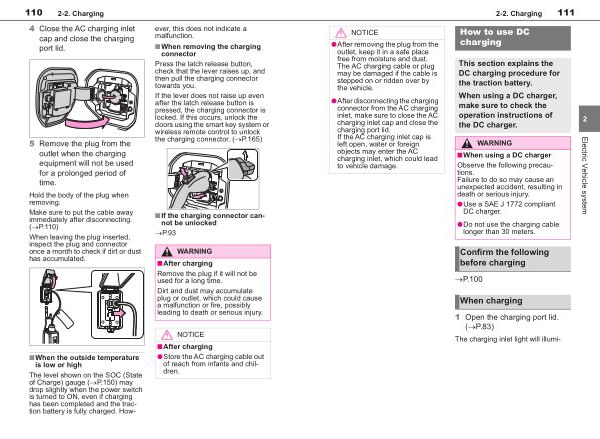

110 2-2 . Charging
4 Close the AC charging inlet cap and close the charging port lid .
5 Remove the plug from the outlet when the charging equipment will not be used for a prolonged period of time .
Hold the body of the plug when removing .
Make sure to put the cable away immediately after disconnecting . ( �P . 110 )
When leaving the plug inserted , inspect the plug and connector once a month to check if dirt or dust has accumulated .
■ When the outside temperature is low or high
The level shown on the SOC ( State of Charge ) gauge ( �P . 150 ) may drop slightly when the power switch is turned to ON , even if charging
has been completed and the traction battery is fully charged . However , this does not indicate a malfunction .
■ When removing the charging connector
Press the latch release button , check that the lever raises up , and then pull the charging connector towards you .
If the lever does not raise up even after the latch release button is pressed , the charging connector is
locked . If this occurs , unlock the doors using the smart key system or wireless remote control to unlock
the charging connector . ( �P . 165 )
■ If the charging connector cannot be unlocked
�P . 93
WARNING
■ After charging Remove the plug if it will not be used for a long time .
Dirt and dust may accumulate plug or outlet , which could cause a malfunction or fire , possibly
leading to death or serious injury .
NOTICE
■ After charging
●Store the AC charging cable out of reach from infants and children .
