SEAT, SEATBELT AND SRS AIRBAGS 79
light and chime. For details, refer to“ Rear passenger’ s seats” FP164.

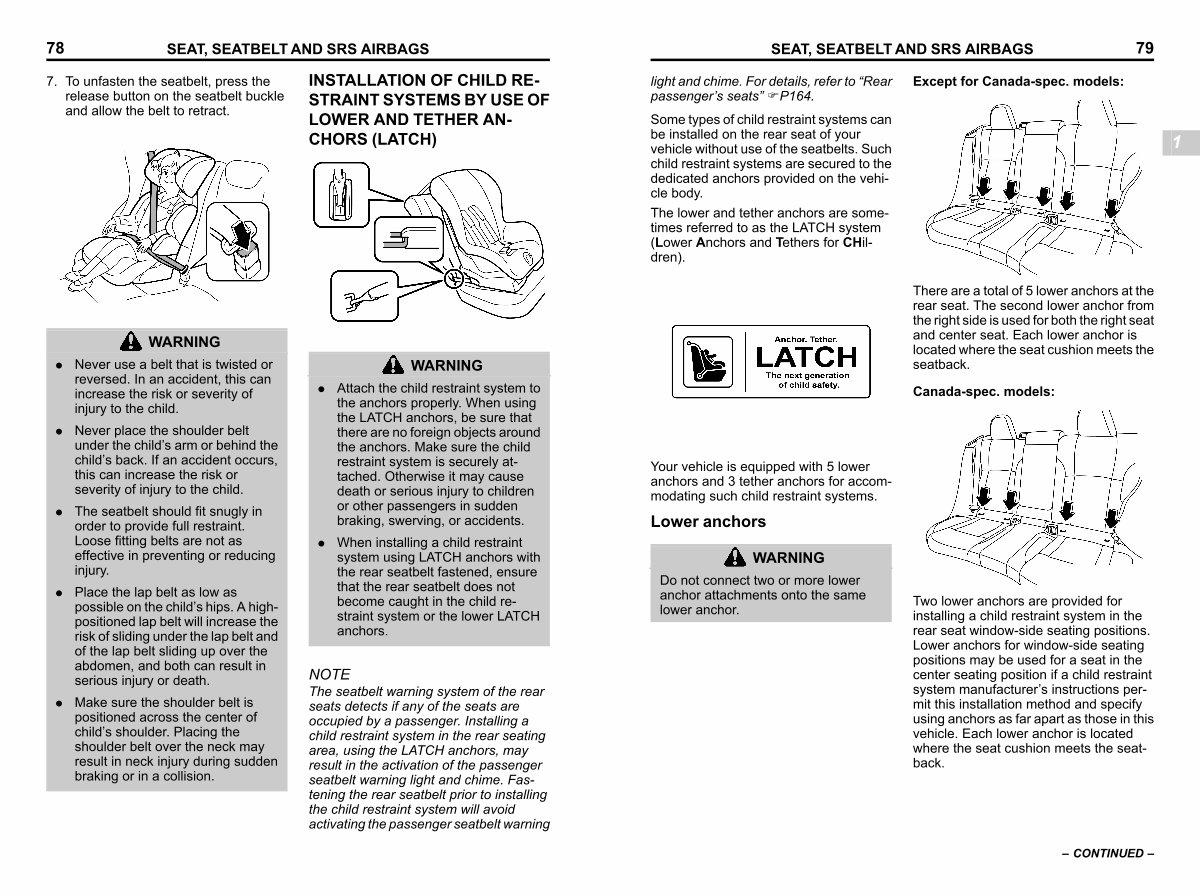

Some types of child restraint systems can be installed on the rear seat of your vehicle without use of the seatbelts. Such child restraint systems are secured to the dedicated anchors provided on the vehicle body.
The lower and tether anchors are sometimes referred to as the LATCH system( Lower Anchors and Tethers for CHildren).
Except for Canada-spec. models:
S _ 103312-W
There are a total of 5 lower anchors at the rear seat. The second lower anchor from the right side is used for both the right seat and center seat. Each lower anchor is located where the seat cushion meets the seatback.
Canada-spec. models:
1
S _ 103110-MW
Your vehicle is equipped with 5 lower anchors and 3 tether anchors for accommodating such child restraint systems.
Lower anchors s01ag0702
WARNING
Do not connect two or more lower anchor attachments onto the same lower anchor.
S _ 103370-W
Two lower anchors are provided for installing a child restraint system in the rear seat window-side seating positions. Lower anchors for window-side seating positions may be used for a seat in the center seating position if a child restraint system manufacturer’ s instructions permit this installation method and specify using anchors as far apart as those in this vehicle. Each lower anchor is located where the seat cushion meets the seatback.
– CONTINUED –
