MAINTENANCE AND SERVICE

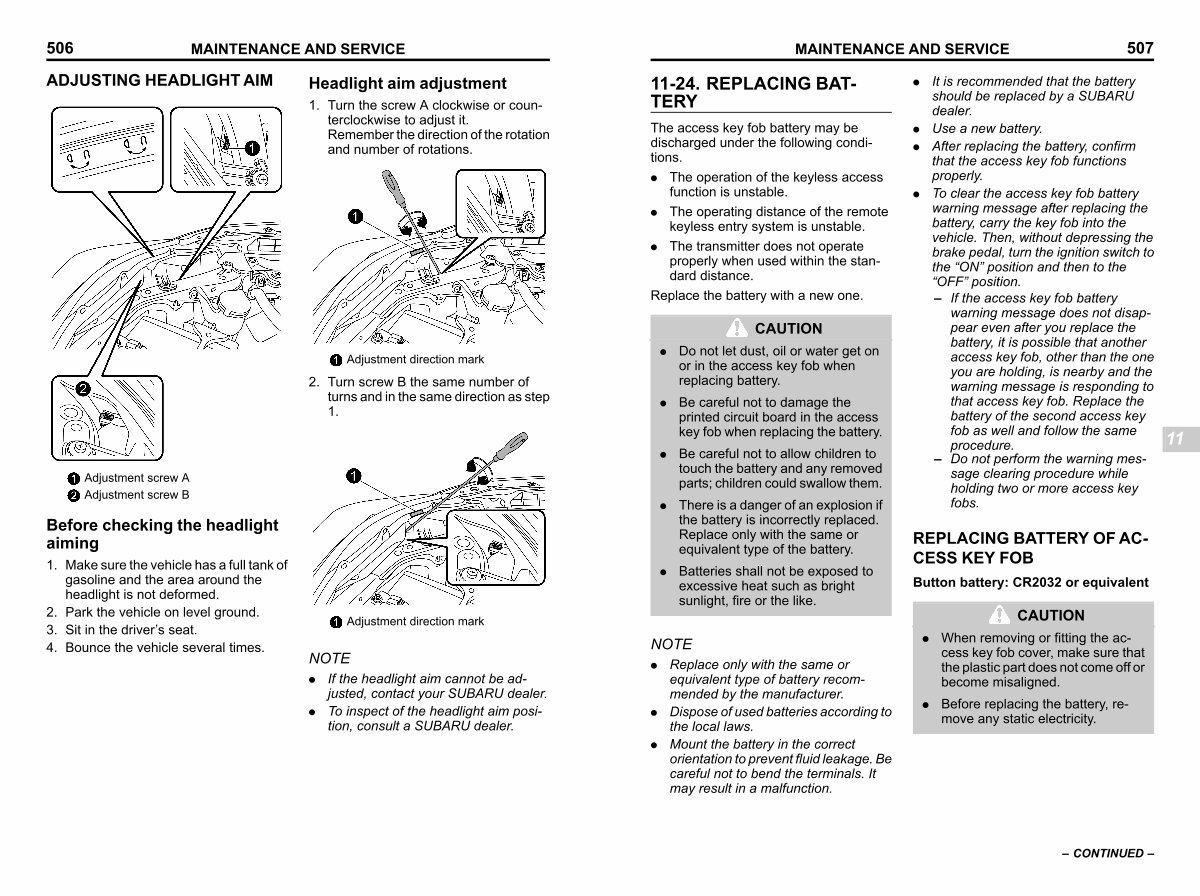

ADJUSTING HEADLIGHT AIM s11be57
Headlight aim adjustment s11be5702
1. Turn the screw A clockwise or counterclockwise to adjust it. Remember the direction of the rotation and number of rotations.
Adjustment direction mark
S _ B02547-W
2. Turn screw B the same number of turns and in the same direction as step 1.
Adjustment screw A Adjustment screw B
S _ B02546-W
Before checking the headlight aiming s11be5701
1. Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed.
2. Park the vehicle on level ground. 3. Sit in the driver’ s seat. 4. Bounce the vehicle several times.
Adjustment direction mark
S _ B02548-W
NOTE
. If the headlight aim cannot be adjusted, contact your SUBARU dealer.
. To inspect of the headlight aim position, consult a SUBARU dealer.
