MAINTENANCE AND SERVICE 505

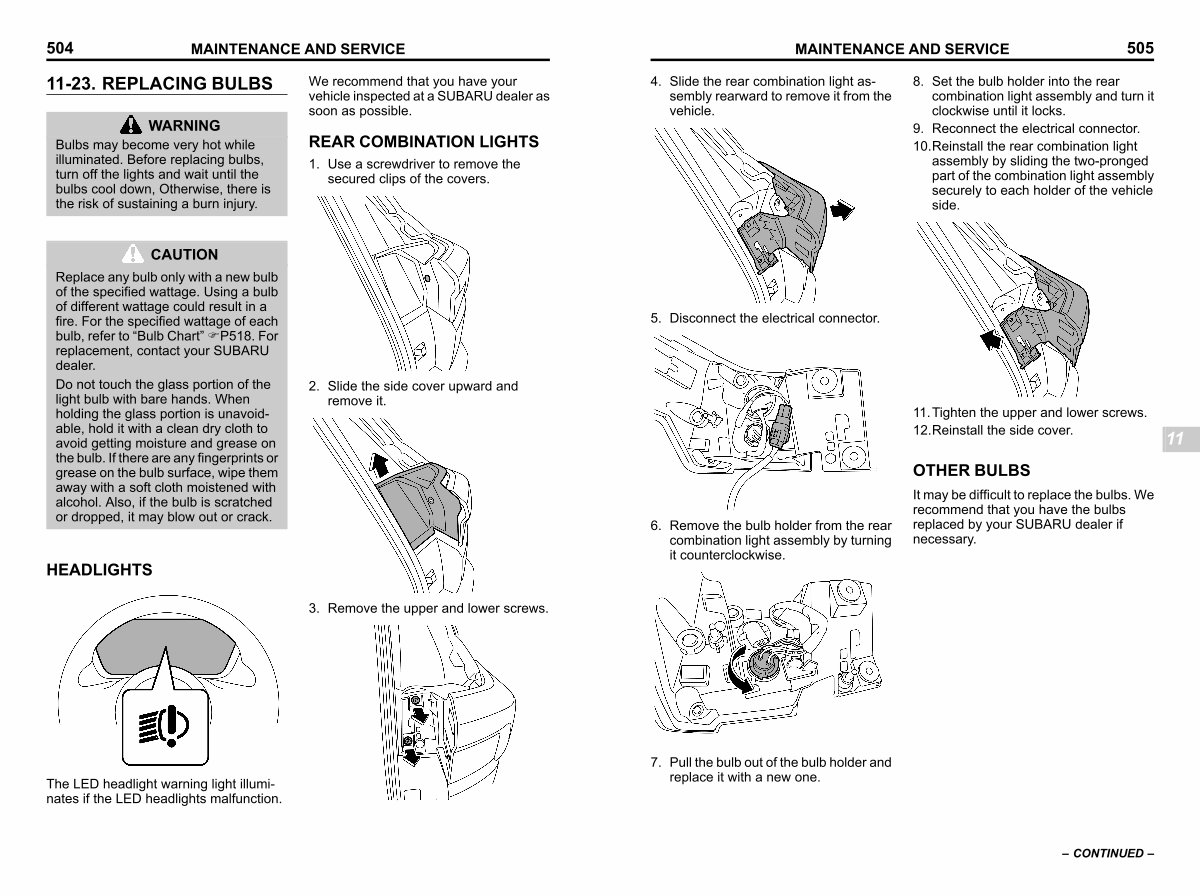

4. Slide the rear combination light assembly rearward to remove it from the vehicle.
8. Set the bulb holder into the rear combination light assembly and turn it clockwise until it locks.
9. Reconnect the electrical connector.
10. Reinstall the rear combination light assembly by sliding the two-pronged part of the combination light assembly securely to each holder of the vehicle side.
S _ B02564-W
5. Disconnect the electrical connector.
S _ B02565-W
6. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise.
S _ B02567-W
11. Tighten the upper and lower screws. 12. Reinstall the side cover.
OTHER BULBS s11be29
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
11
S _ B02566-W
7. Pull the bulb out of the bulb holder and replace it with a new one.
– CONTINUED –
