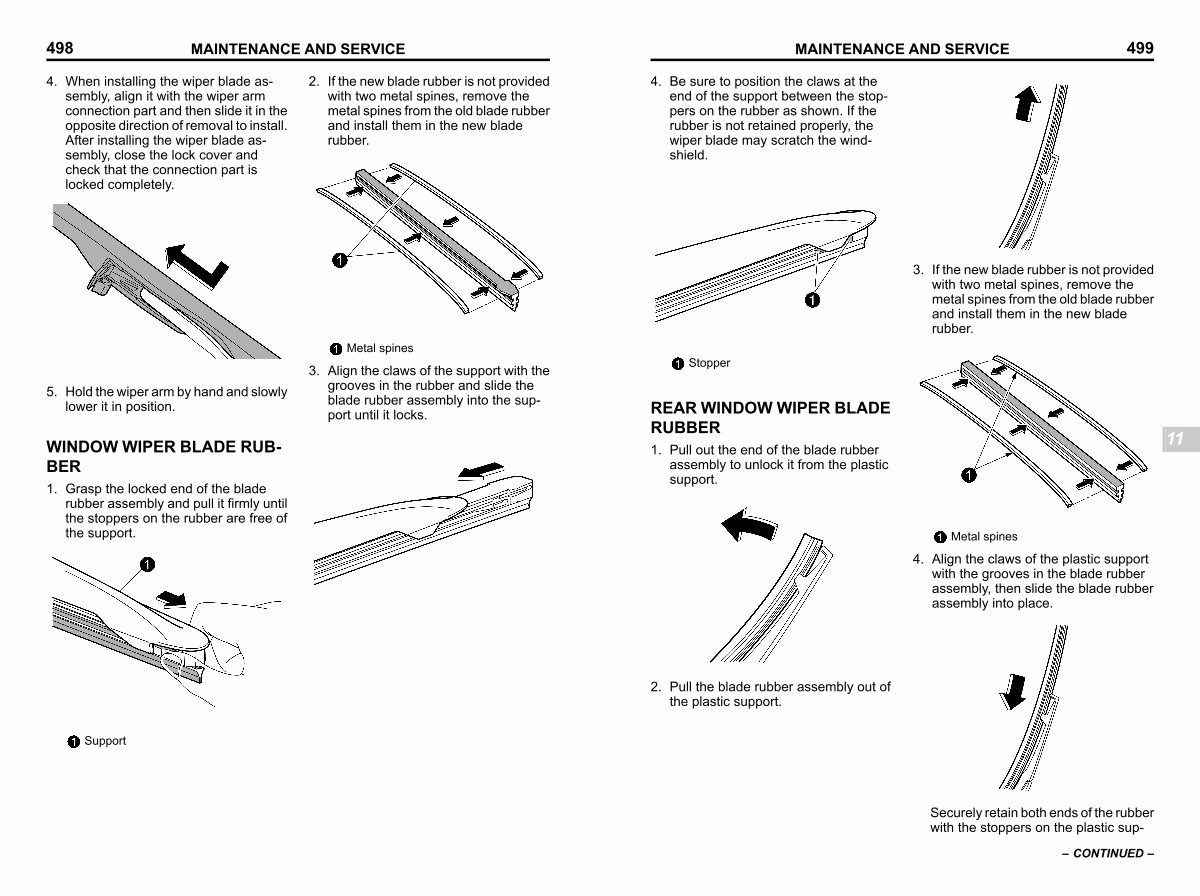

4. Be sure to position the claws at the end of the support between the stoppers on the rubber as shown. If the rubber is not retained properly, the wiper blade may scratch the windshield.
MAINTENANCE AND SERVICE 499
Stopper
S _ B02616-W
S _ B02389-W
3. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber.
REAR WINDOW WIPER BLADE RUBBER s11az04
1. Pull out the end of the blade rubber assembly to unlock it from the plastic support.
11
Metal spines
S _ B02487-W
4. Align the claws of the plastic support with the grooves in the blade rubber assembly, then slide the blade rubber assembly into place.
S _ B02388-W
2. Pull the blade rubber assembly out of the plastic support.
S _ B02391-W
Securely retain both ends of the rubber with the stoppers on the plastic sup-
– CONTINUED –
