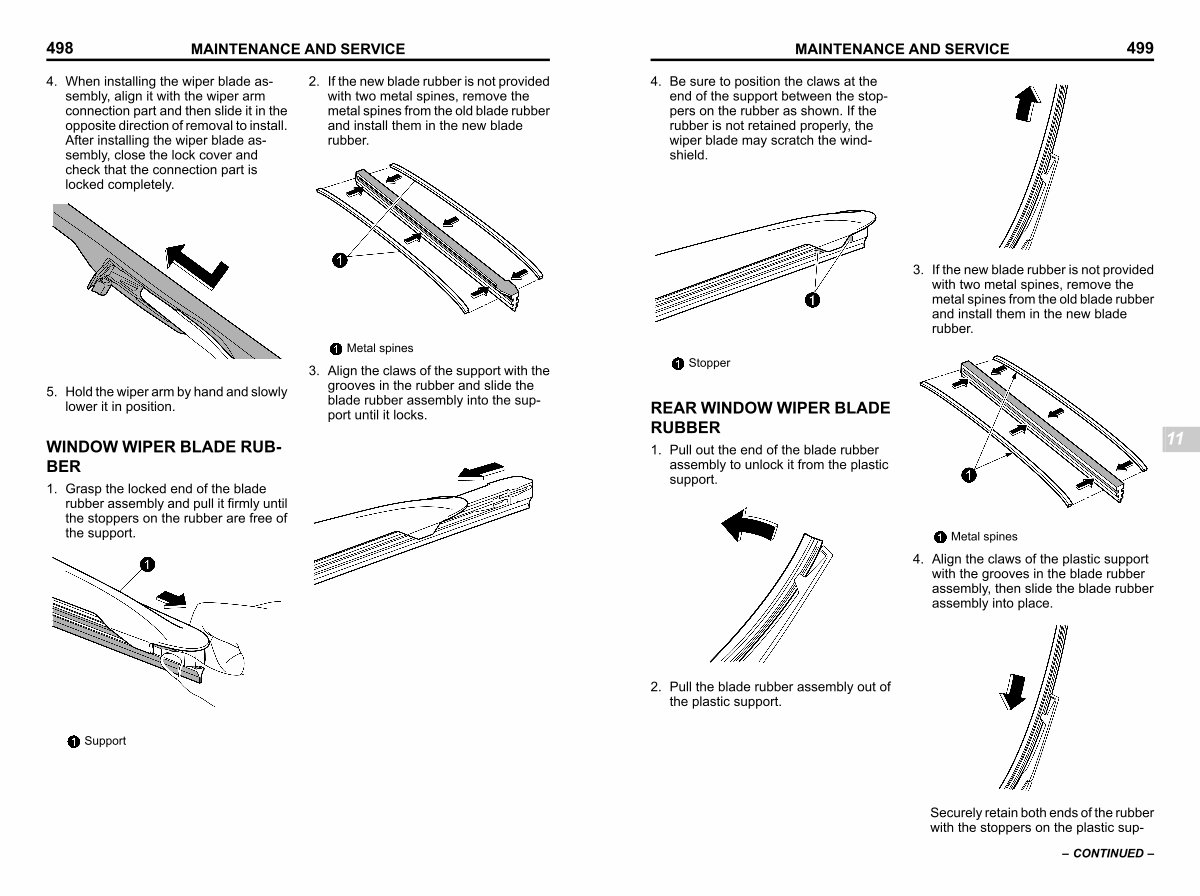

498
MAINTENANCE AND SERVICE
4. When installing the wiper blade assembly, align it with the wiper arm connection part and then slide it in the opposite direction of removal to install. After installing the wiper blade assembly, close the lock cover and check that the connection part is locked completely.
2. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber.
S _ B02612-W
5. Hold the wiper arm by hand and slowly lower it in position.
Metal spines
S _ B02614-W
3. Align the claws of the support with the grooves in the rubber and slide the blade rubber assembly into the support until it locks.
WINDOW WIPER BLADE RUB- BER s11az05
1. Grasp the locked end of the blade rubber assembly and pull it firmly until the stoppers on the rubber are free of the support.
S _ B02615-W
Support
S _ B02613-W
