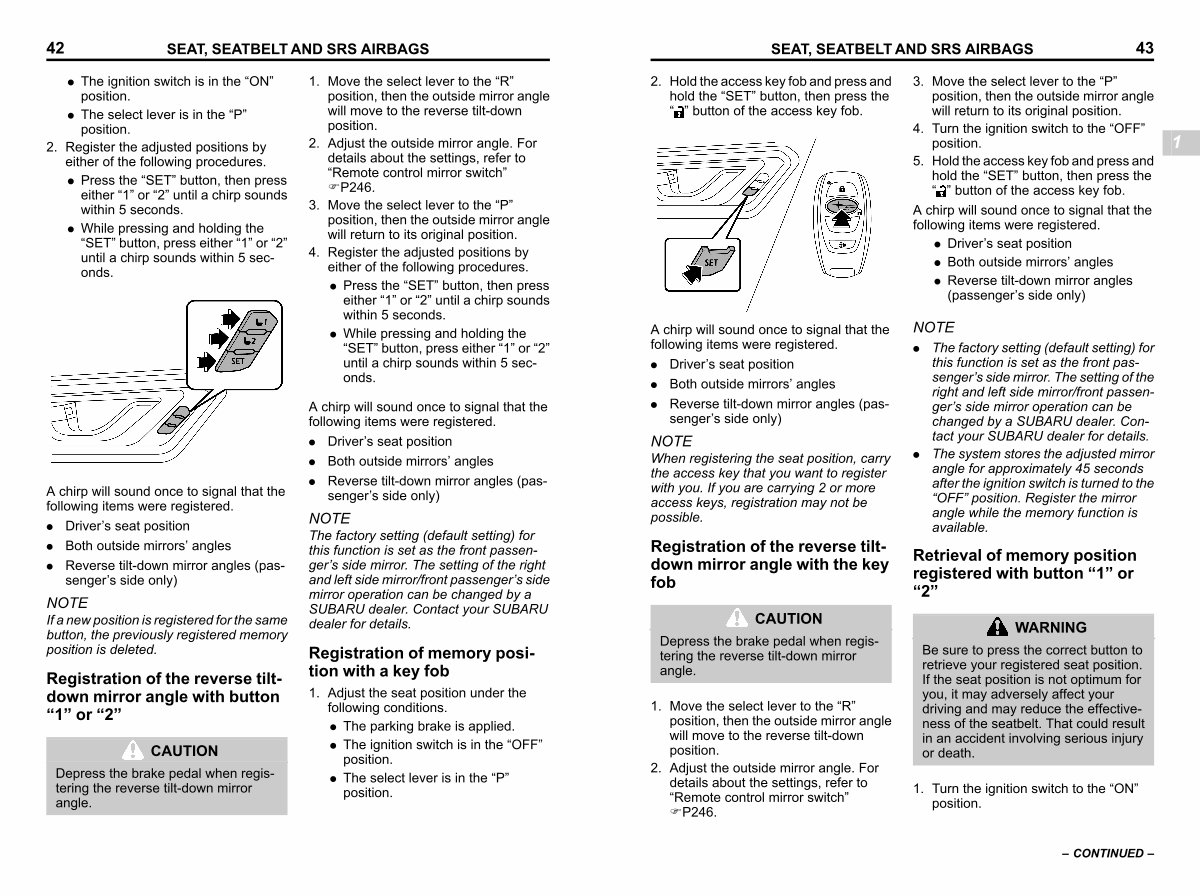

42
SEAT, SEATBELT AND SRS AIRBAGS
. The ignition switch is in the“ ON” position.
. The select lever is in the“ P” position.
2. Register the adjusted positions by either of the following procedures.
. Press the“ SET” button, then press either“ 1” or“ 2” until a chirp sounds within 5 seconds.
. While pressing and holding the“ SET” button, press either“ 1” or“ 2” until a chirp sounds within 5 seconds.
S _ 103340-W
A chirp will sound once to signal that the following items were registered.
. Driver’ s seat position. Both outside mirrors’ angles
. Reverse tilt-down mirror angles( passenger’ s side only)
NOTE
If a new position is registered for the same button, the previously registered memory position is deleted.
Registration of the reverse tiltdown mirror angle with button“ 1” or“ 2” s01aa0302
CAUTION
Depress the brake pedal when registering the reverse tilt-down mirror angle.
1. Move the select lever to the“ R” position, then the outside mirror angle will move to the reverse tilt-down position.
2. Adjust the outside mirror angle. For details about the settings, refer to“ Remote control mirror switch” FP246.
3. Move the select lever to the“ P” position, then the outside mirror angle will return to its original position.
4. Register the adjusted positions by either of the following procedures.
. Press the“ SET” button, then press either“ 1” or“ 2” until a chirp sounds within 5 seconds.
. While pressing and holding the“ SET” button, press either“ 1” or“ 2” until a chirp sounds within 5 seconds.
A chirp will sound once to signal that the following items were registered.
. Driver’ s seat position. Both outside mirrors’ angles
. Reverse tilt-down mirror angles( passenger’ s side only)
NOTE
The factory setting( default setting) for this function is set as the front passenger’ s side mirror. The setting of the right and left side mirror / front passenger’ s side mirror operation can be changed by a SUBARU dealer. Contact your SUBARU dealer for details.
Registration of memory position with a key fob s01aa0303
1. Adjust the seat position under the following conditions.
. The parking brake is applied.
. The ignition switch is in the“ OFF” position.
. The select lever is in the“ P” position.
