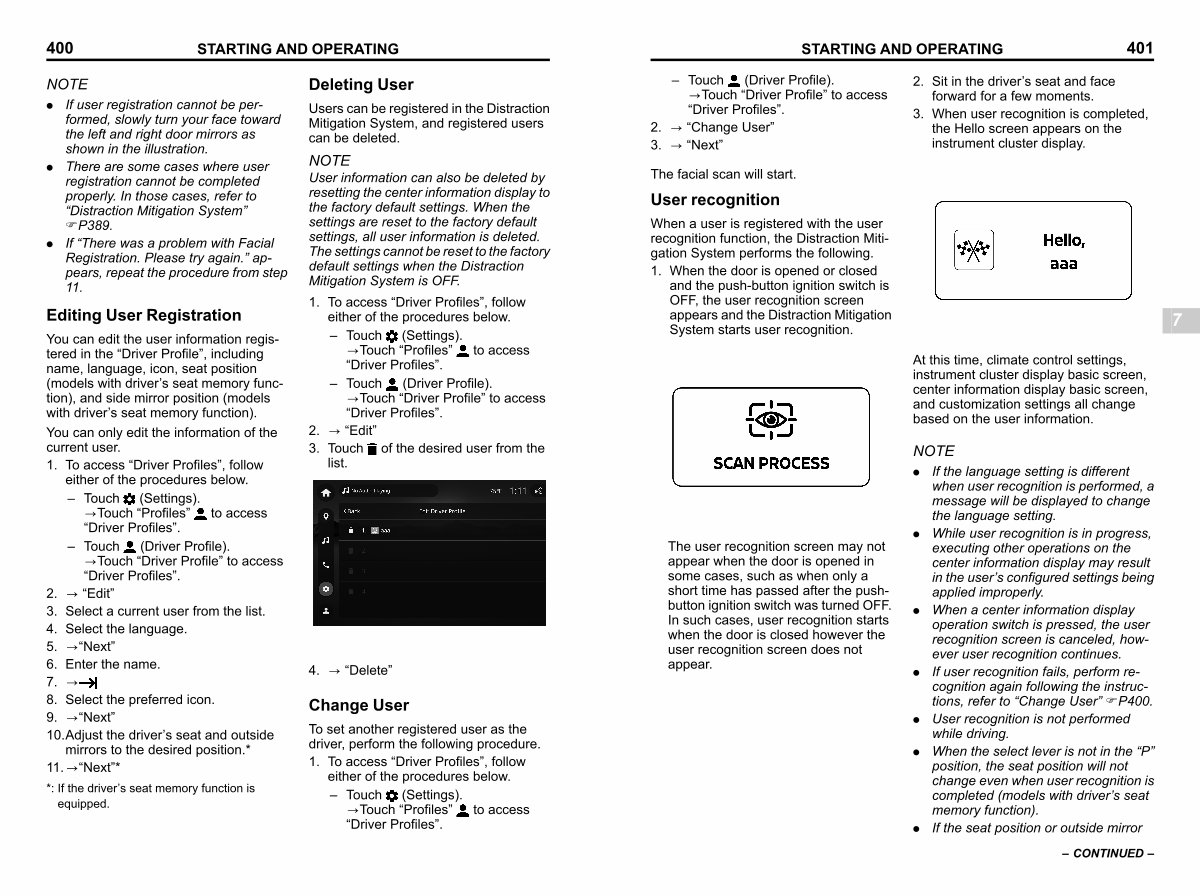

STARTING AND OPERATING 401
– Touch( Driver Profile).? Touch“ Driver Profile” to access“ Driver Profiles”.
2.?“ Change User” 3.?“ Next”
The facial scan will start.
User recognition s07bp0401
When a user is registered with the user recognition function, the Distraction Mitigation System performs the following.
1. When the door is opened or closed and the push-button ignition switch is OFF, the user recognition screen appears and the Distraction Mitigation System starts user recognition.
2. Sit in the driver’ s seat and face forward for a few moments.
3. When user recognition is completed, the Hello screen appears on the instrument cluster display.
S _ 703467-W
At this time, climate control settings, instrument cluster display basic screen, center information display basic screen, and customization settings all change based on the user information.
7
S _ 703466-W
The user recognition screen may not appear when the door is opened in some cases, such as when only a short time has passed after the pushbutton ignition switch was turned OFF. In such cases, user recognition starts when the door is closed however the user recognition screen does not appear.
NOTE
. If the language setting is different when user recognition is performed, a message will be displayed to change the language setting.
. While user recognition is in progress, executing other operations on the center information display may result in the user’ s configured settings being applied improperly.
. When a center information display operation switch is pressed, the user recognition screen is canceled, however user recognition continues.
. If user recognition fails, perform recognition again following the instructions, refer to“ Change User” FP400.
. User recognition is not performed while driving.
. When the select lever is not in the“ P” position, the seat position will not change even when user recognition is completed( models with driver’ s seat memory function).
. If the seat position or outside mirror
– CONTINUED –
