STARTING AND OPERATING 371

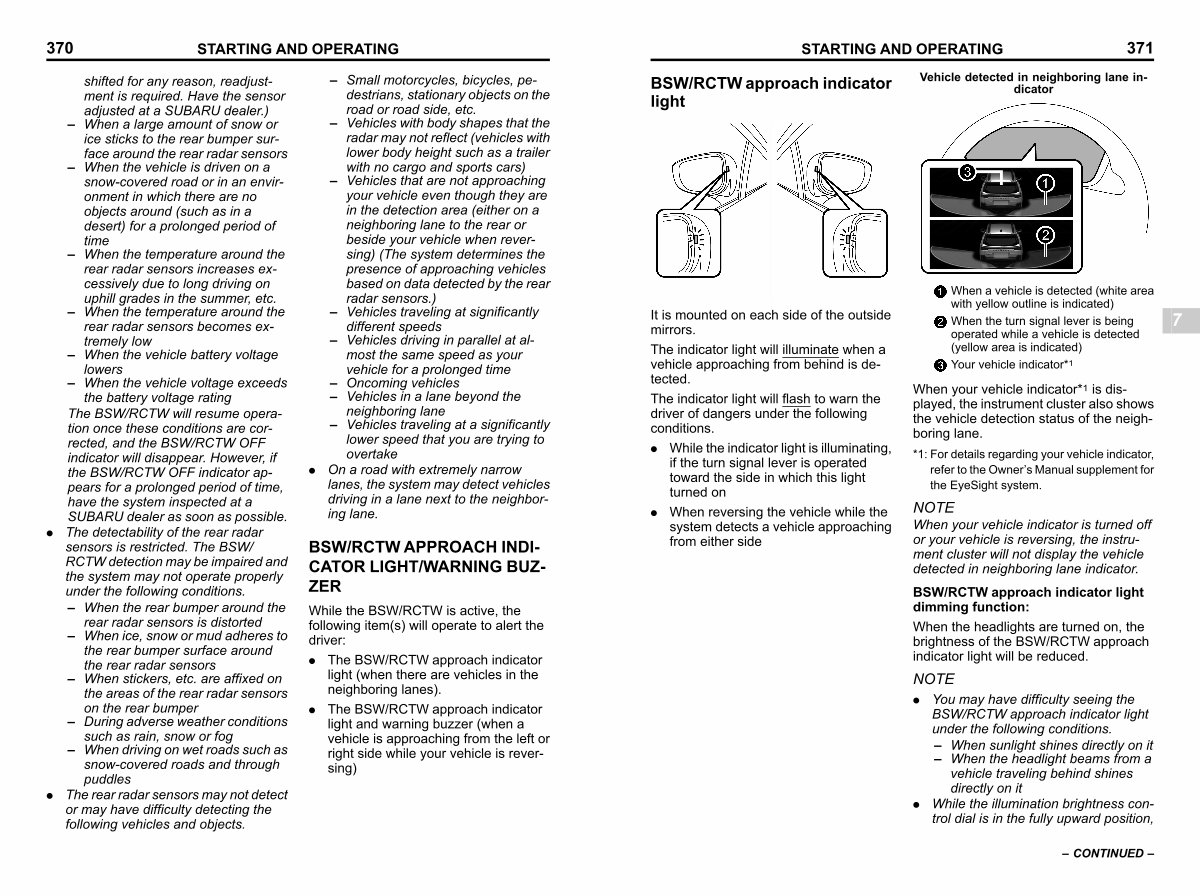

BSW / RCTW approach indicator light s07bm0301
Vehicle detected in neighboring lane indicator
S _ 703175-W
It is mounted on each side of the outside mirrors.
The indicator light will illuminate when a vehicle approaching from behind is detected.
The indicator light will flash to warn the driver of dangers under the following conditions.
. While the indicator light is illuminating, if the turn signal lever is operated toward the side in which this light turned on
. When reversing the vehicle while the system detects a vehicle approaching from either side
S _ 703584-W
When a vehicle is detected( white area with yellow outline is indicated)
When the turn signal lever is being operated while a vehicle is detected( yellow area is indicated)
Your vehicle indicator * 1
When your vehicle indicator * 1 is displayed, the instrument cluster also shows the vehicle detection status of the neighboring lane.
* 1: For details regarding your vehicle indicator, refer to the Owner’ s Manual supplement for the EyeSight system.
NOTE
When your vehicle indicator is turned off or your vehicle is reversing, the instrument cluster will not display the vehicle detected in neighboring lane indicator.
BSW / RCTW approach indicator light dimming function:
When the headlights are turned on, the brightness of the BSW / RCTW approach indicator light will be reduced.
NOTE
. You may have difficulty seeing the BSW / RCTW approach indicator light under the following conditions.
– When sunlight shines directly on it – When the headlight beams from a
vehicle traveling behind shines directly on it
. While the illumination brightness control dial is in the fully upward position,
7
– CONTINUED –
