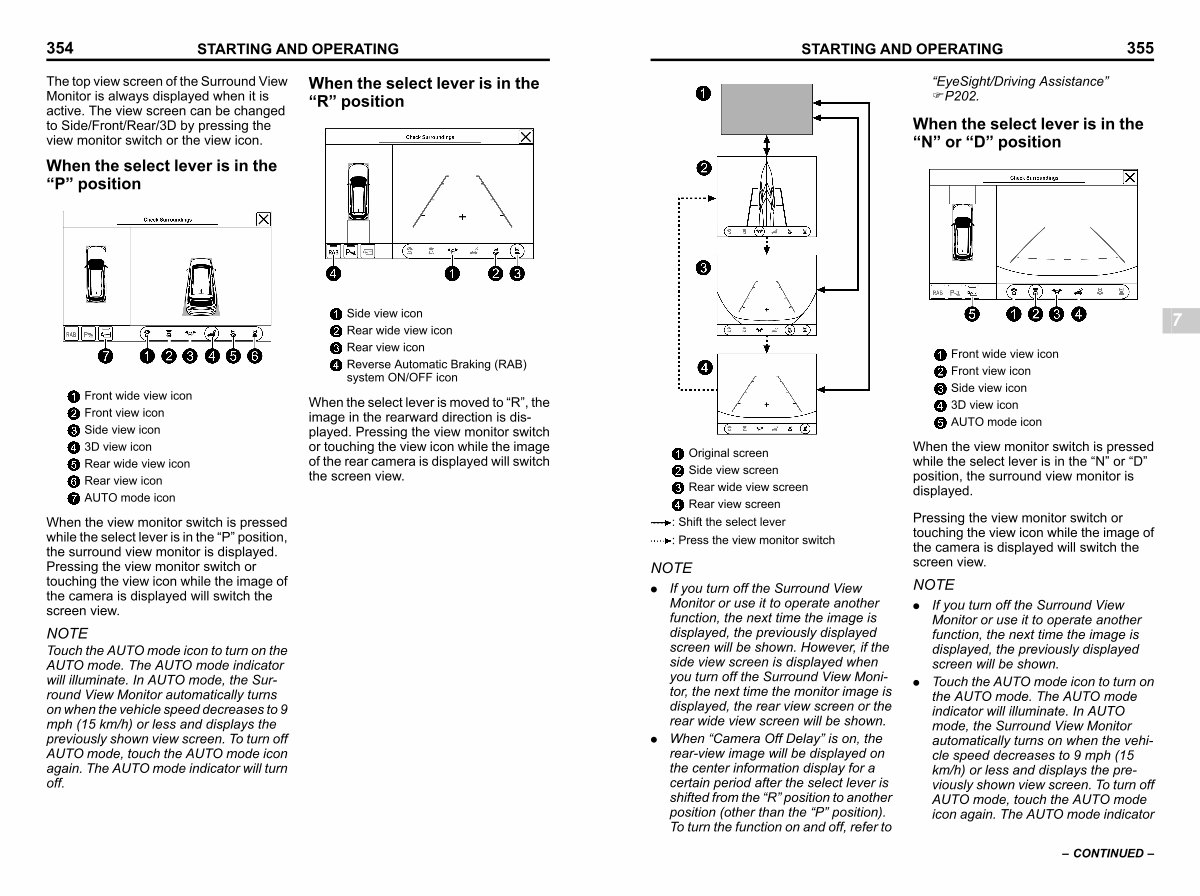

STARTING AND OPERATING 355
“ EyeSight / Driving Assistance” FP202.
When the select lever is in the“ N” or“ D” position s07bu0106
S _ 703509-W
Original screen Side view screen Rear wide view screen Rear view screen: Shift the select lever: Press the view monitor switch
NOTE
. If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the previously displayed screen will be shown. However, if the side view screen is displayed when you turn off the Surround View Monitor, the next time the monitor image is displayed, the rear view screen or the rear wide view screen will be shown.
. When“ Camera Off Delay” is on, the rear-view image will be displayed on the center information display for a certain period after the select lever is shifted from the“ R” position to another position( other than the“ P” position). To turn the function on and off, refer to
Front wide view icon Front view icon Side view icon 3D view icon AUTO mode icon
S _ 703510-W
When the view monitor switch is pressed while the select lever is in the“ N” or“ D” position, the surround view monitor is displayed.
Pressing the view monitor switch or touching the view icon while the image of the camera is displayed will switch the screen view.
NOTE
. If you turn off the Surround View Monitor or use it to operate another function, the next time the image is displayed, the previously displayed screen will be shown.
. Touch the AUTO mode icon to turn on the AUTO mode. The AUTO mode indicator will illuminate. In AUTO mode, the Surround View Monitor automatically turns on when the vehicle speed decreases to 9 mph( 15 km / h) or less and displays the previously shown view screen. To turn off AUTO mode, touch the AUTO mode icon again. The AUTO mode indicator
– CONTINUED –
7
