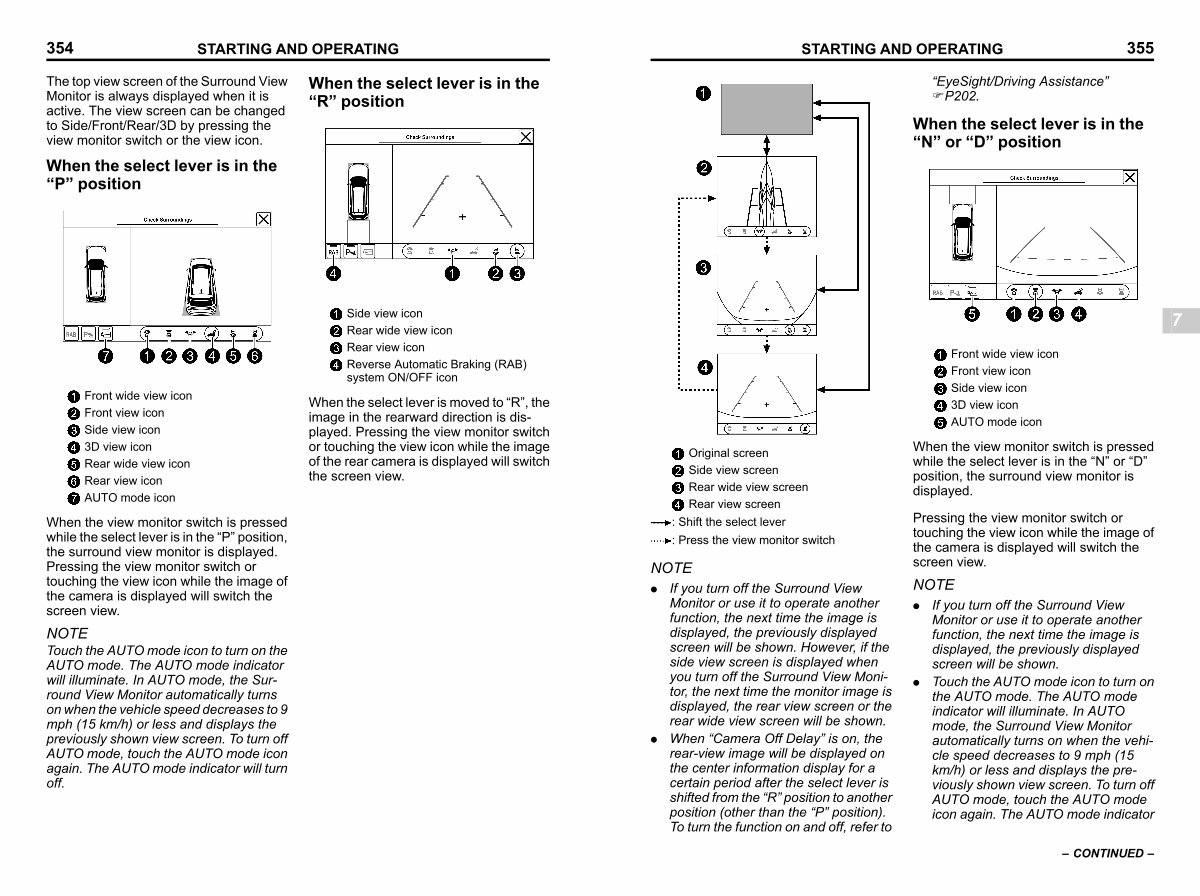

354
STARTING AND OPERATING
The top view screen of the Surround View Monitor is always displayed when it is active. The view screen can be changed to Side / Front / Rear / 3D by pressing the view monitor switch or the view icon.
When the select lever is in the“ P” position s07bu0104
When the select lever is in the“ R” position s07bu0105
Front wide view icon Front view icon Side view icon 3D view icon Rear wide view icon Rear view icon AUTO mode icon
S _ 703507-W
When the view monitor switch is pressed while the select lever is in the“ P” position, the surround view monitor is displayed. Pressing the view monitor switch or touching the view icon while the image of the camera is displayed will switch the screen view.
NOTE
Touch the AUTO mode icon to turn on the AUTO mode. The AUTO mode indicator will illuminate. In AUTO mode, the Surround View Monitor automatically turns on when the vehicle speed decreases to 9 mph( 15 km / h) or less and displays the previously shown view screen. To turn off AUTO mode, touch the AUTO mode icon again. The AUTO mode indicator will turn off.
S _ 703508-W
Side view icon Rear wide view icon Rear view icon
Reverse Automatic Braking( RAB) system ON / OFF icon
When the select lever is moved to“ R”, the image in the rearward direction is displayed. Pressing the view monitor switch or touching the view icon while the image of the rear camera is displayed will switch the screen view.
