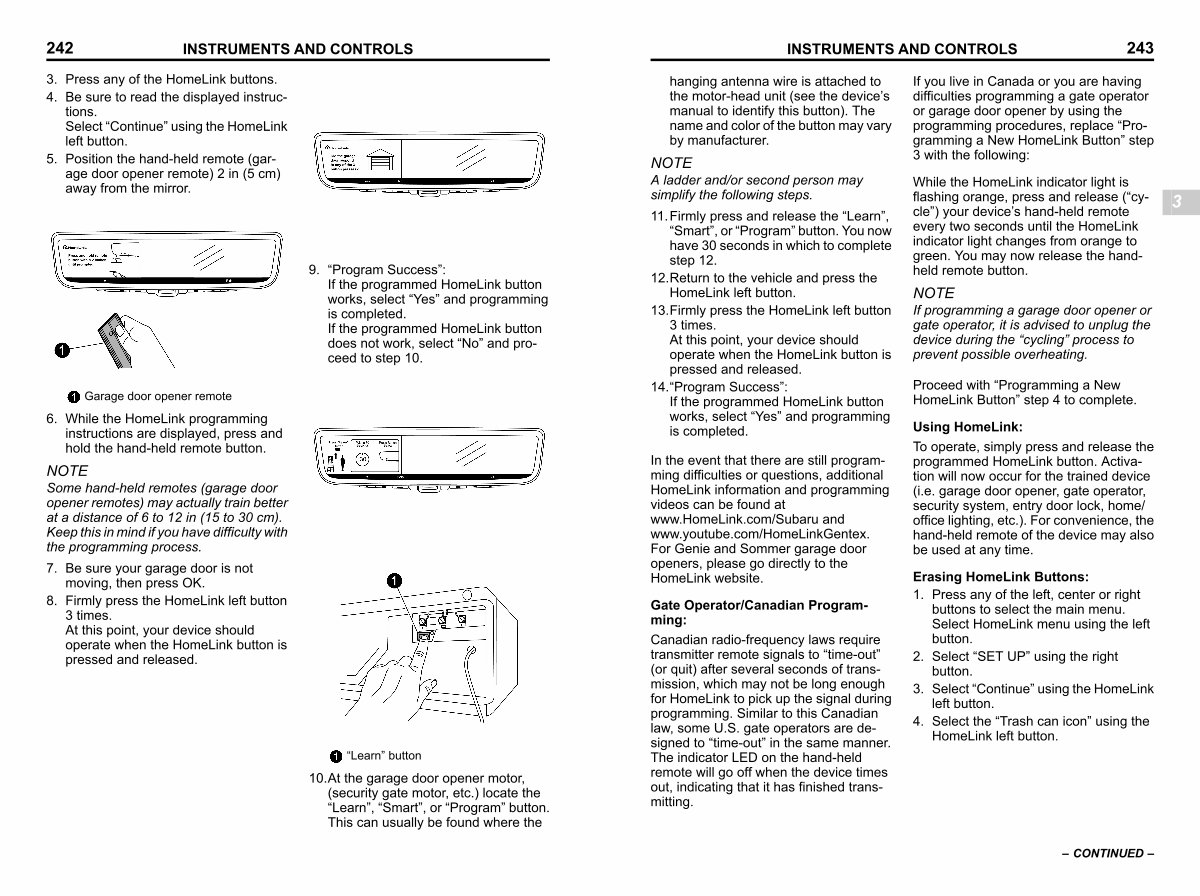

242
INSTRUMENTS AND CONTROLS
3. Press any of the HomeLink buttons.
4. Be sure to read the displayed instructions. Select“ Continue” using the HomeLink left button.
5. Position the hand-held remote( garage door opener remote) 2 in( 5 cm) away from the mirror.
S _ 308190-W
Garage door opener remote
6. While the HomeLink programming instructions are displayed, press and hold the hand-held remote button.
NOTE
Some hand-held remotes( garage door opener remotes) may actually train better at a distance of 6 to 12 in( 15 to 30 cm). Keep this in mind if you have difficulty with the programming process.
7. Be sure your garage door is not moving, then press OK.
8. Firmly press the HomeLink left button 3 times. At this point, your device should operate when the HomeLink button is pressed and released.
S _ 308191-W
9.“ Program Success”: If the programmed HomeLink button works, select“ Yes” and programming is completed. If the programmed HomeLink button does not work, select“ No” and proceed to step 10.
S _ 308192-W
“ Learn” button
S _ 307931-W
10. At the garage door opener motor,( security gate motor, etc.) locate the“ Learn”,“ Smart”, or“ Program” button. This can usually be found where the
