194
INSTRUMENTS AND CONTROLS

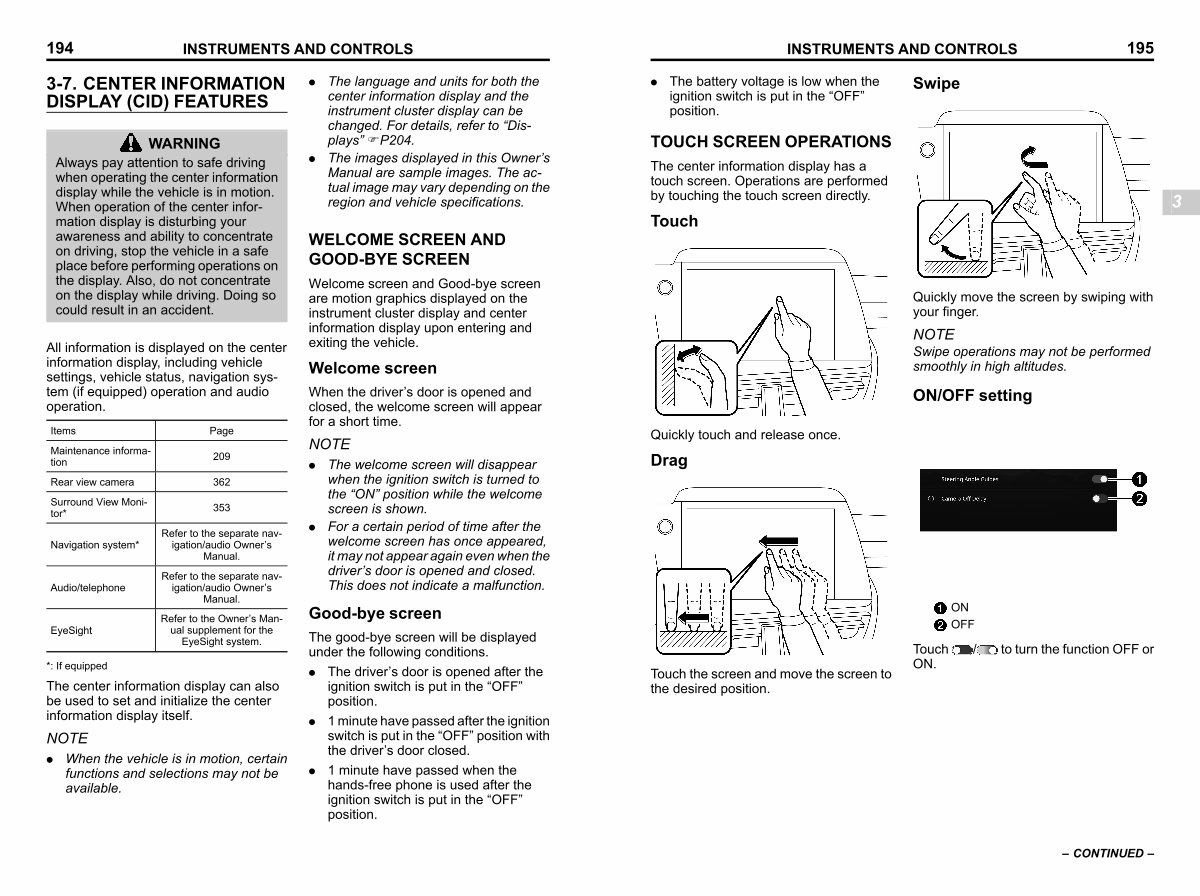

3-7. CENTER INFORMATION DISPLAY( CID) FEATURES
s03bs
WARNING
Always pay attention to safe driving when operating the center information display while the vehicle is in motion. When operation of the center information display is disturbing your awareness and ability to concentrate on driving, stop the vehicle in a safe place before performing operations on the display. Also, do not concentrate on the display while driving. Doing so could result in an accident.
All information is displayed on the center information display, including vehicle settings, vehicle status, navigation system( if equipped) operation and audio operation.
Items
Maintenance information
Page 209
Rear view camera 362
Surround View Monitor *
Navigation system *
Audio / telephone
EyeSight
353
Refer to the separate navigation / audio Owner’ s Manual.
Refer to the separate navigation / audio Owner’ s Manual.
Refer to the Owner’ s Manual supplement for the EyeSight system.
*: If equipped
The center information display can also be used to set and initialize the center information display itself.
NOTE
. When the vehicle is in motion, certain functions and selections may not be available.
. The language and units for both the center information display and the instrument cluster display can be changed. For details, refer to“ Displays” FP204.
. The images displayed in this Owner’ s Manual are sample images. The actual image may vary depending on the region and vehicle specifications.
WELCOME SCREEN AND GOOD-BYE SCREEN s03bs02
Welcome screen and Good-bye screen are motion graphics displayed on the instrument cluster display and center information display upon entering and exiting the vehicle.
Welcome screen s03bs0201
When the driver’ s door is opened and closed, the welcome screen will appear for a short time.
NOTE
. The welcome screen will disappear when the ignition switch is turned to the“ ON” position while the welcome screen is shown.
. For a certain period of time after the welcome screen has once appeared, it may not appear again even when the driver’ s door is opened and closed. This does not indicate a malfunction.
Good-bye screen s03bs0202
The good-bye screen will be displayed under the following conditions.
. The driver’ s door is opened after the ignition switch is put in the“ OFF” position.
. 1 minute have passed after the ignition switch is put in the“ OFF” position with the driver’ s door closed.
. 1 minute have passed when the hands-free phone is used after the ignition switch is put in the“ OFF” position.
