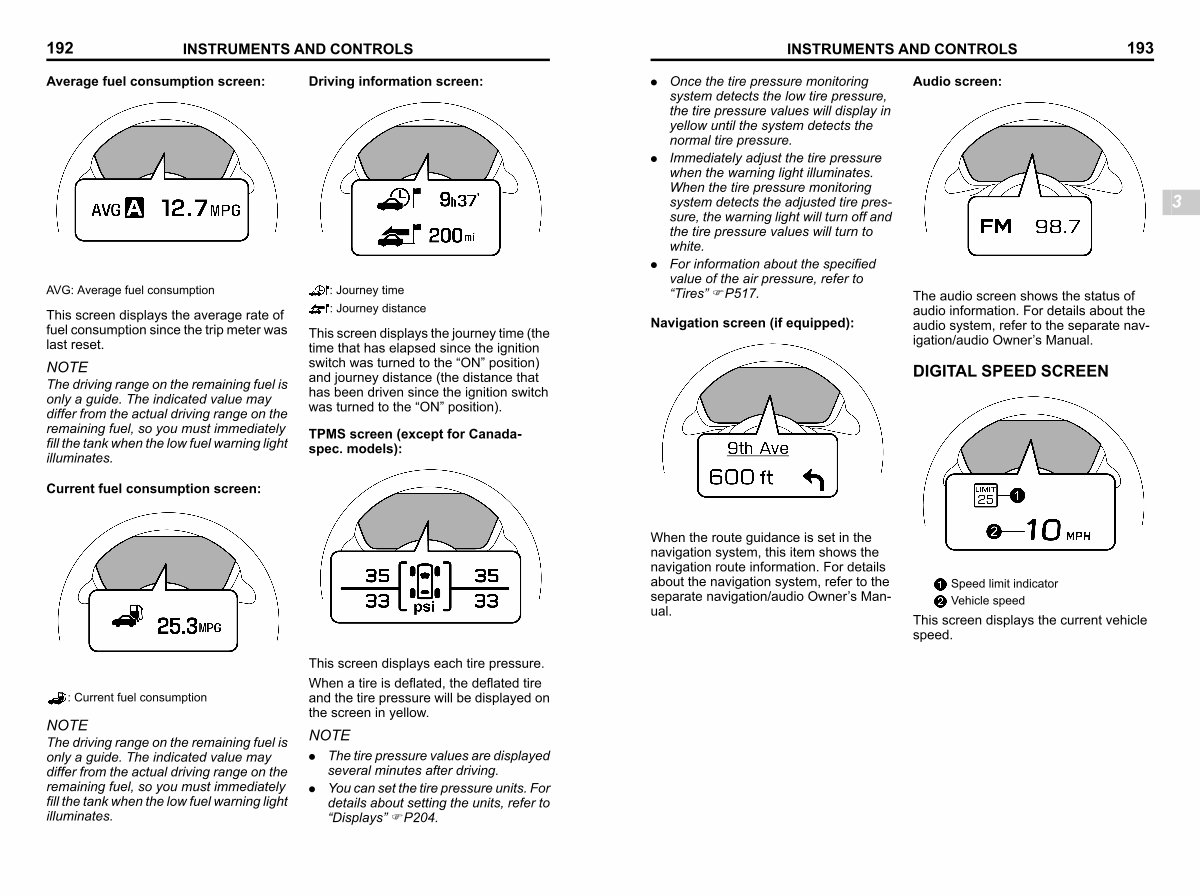

INSTRUMENTS AND CONTROLS 193
. Once the tire pressure monitoring system detects the low tire pressure, the tire pressure values will display in yellow until the system detects the normal tire pressure.
. Immediately adjust the tire pressure when the warning light illuminates. When the tire pressure monitoring system detects the adjusted tire pressure, the warning light will turn off and the tire pressure values will turn to white.
. For information about the specified value of the air pressure, refer to“ Tires” FP517.
Navigation screen( if equipped):
Audio screen:
S _ 308088-W
The audio screen shows the status of audio information. For details about the audio system, refer to the separate navigation / audio Owner’ s Manual.
3
DIGITAL SPEED SCREEN s03bn11
S _ 308087-W
When the route guidance is set in the navigation system, this item shows the navigation route information. For details about the navigation system, refer to the separate navigation / audio Owner’ s Manual.
S _ 308351-W
Speed limit indicator Vehicle speed
This screen displays the current vehicle speed.
