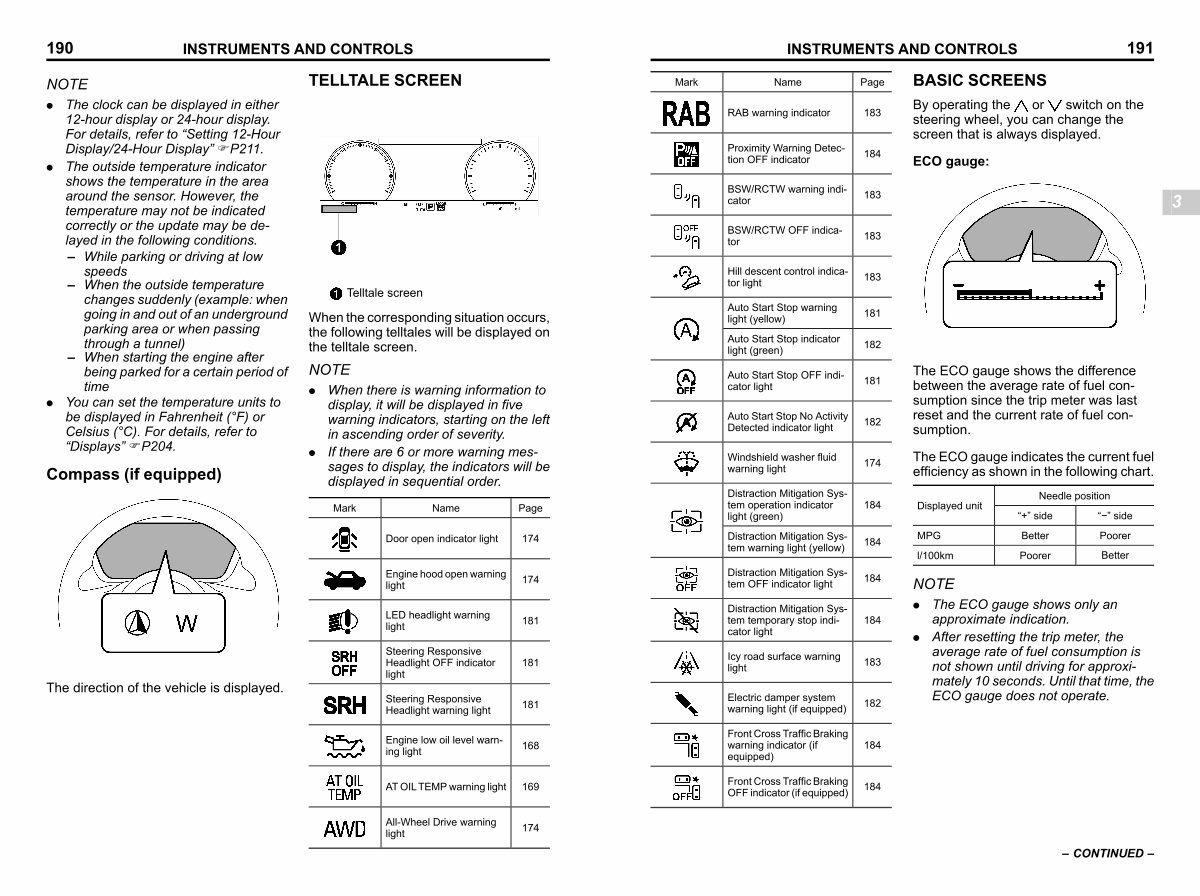

190 INSTRUMENTS AND CONTROLS
NOTE
. The clock can be displayed in either 12-hour display or 24-hour display. For details, refer to“ Setting 12-Hour Display / 24-Hour Display” FP211.
. The outside temperature indicator shows the temperature in the area around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the engine after
being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to“ Displays” FP204.
Compass( if equipped) s03bn1203
TELLTALE SCREEN
Telltale screen s03bn09
S _ 308350-W
When the corresponding situation occurs, the following telltales will be displayed on the telltale screen.
NOTE
. When there is warning information to display, it will be displayed in five warning indicators, starting on the left in ascending order of severity.
. If there are 6 or more warning messages to display, the indicators will be displayed in sequential order.
Mark Name Page
Door open indicator light 174
Engine hood open warning light
174
LED headlight warning light
181
S _ 308257-W
The direction of the vehicle is displayed.
Steering Responsive Headlight OFF indicator light
Steering Responsive Headlight warning light
181
181
Engine low oil level warning light
168
AT OILTEMP warning light 169
All-Wheel Drive warning light
174
