158
INSTRUMENTS AND CONTROLS

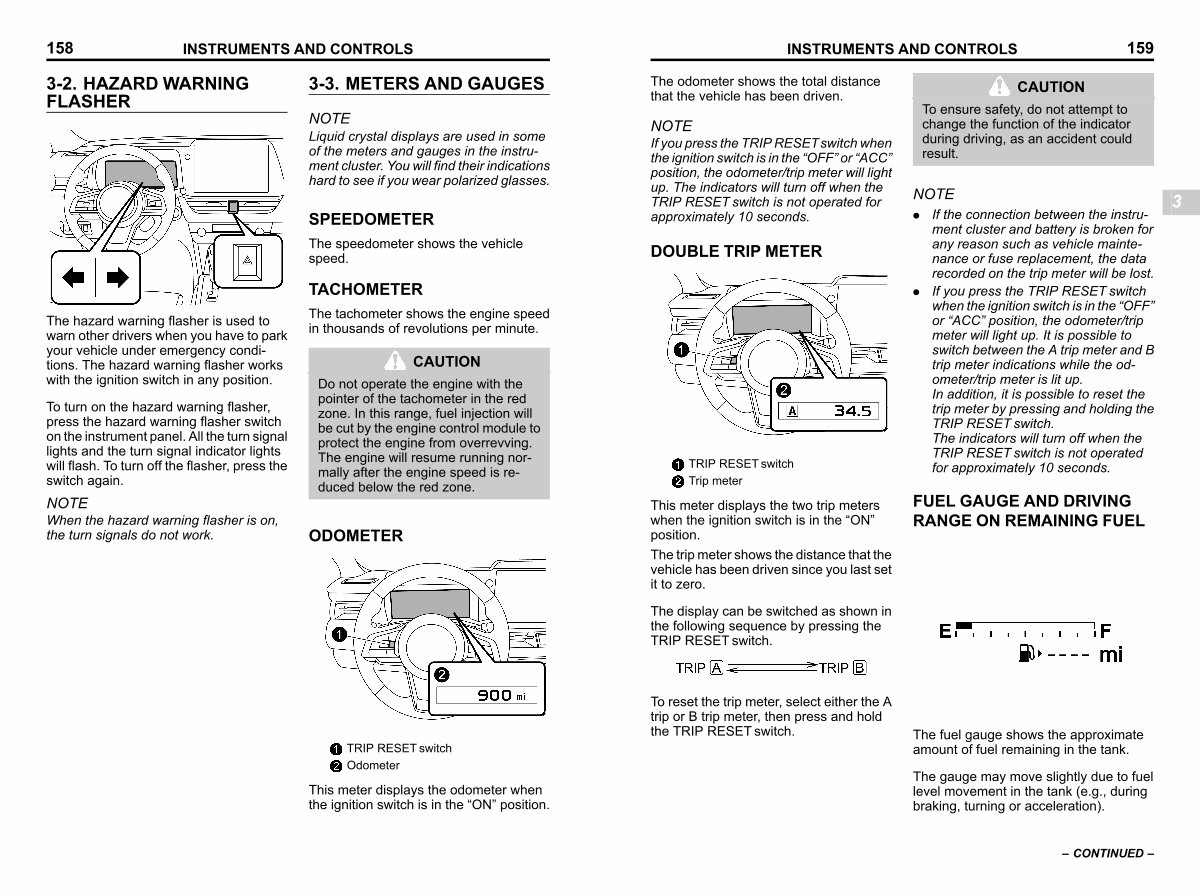

3-2. HAZARD WARNING FLASHER s03ab
3-3. METERS AND GAUGES s03ad
NOTE
Liquid crystal displays are used in some of the meters and gauges in the instrument cluster. You will find their indications hard to see if you wear polarized glasses.
SPEEDOMETER s03ad03
The speedometer shows the vehicle speed.
S _ 308337-W
The hazard warning flasher is used to warn other drivers when you have to park your vehicle under emergency conditions. The hazard warning flasher works with the ignition switch in any position.
To turn on the hazard warning flasher, press the hazard warning flasher switch on the instrument panel. All the turn signal lights and the turn signal indicator lights will flash. To turn off the flasher, press the switch again.
NOTE
When the hazard warning flasher is on, the turn signals do not work.
TACHOMETER s03ad06
The tachometer shows the engine speed in thousands of revolutions per minute.
CAUTION
Do not operate the engine with the pointer of the tachometer in the red zone. In this range, fuel injection will be cut by the engine control module to protect the engine from overrevving. The engine will resume running normally after the engine speed is reduced below the red zone.
ODOMETER s03ad04
TRIP RESET switch Odometer
S _ 308338-W
This meter displays the odometer when the ignition switch is in the“ ON” position.
