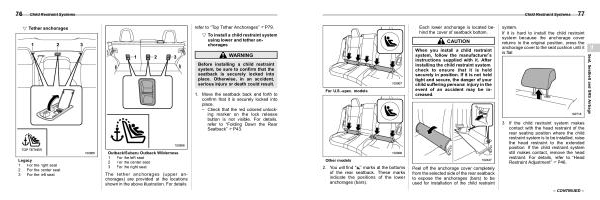

Child Restraint Systems 77 |
||||||||
For U . S . -spec . models |
Each lower anchorage is located behind the cover of seatback bottom .
CAUTION
When you install a child restraint system , follow the manufacturer ’ s instructions supplied with it . After installing the child restraint system , check to ensure that it is held securely in position . If it is not held tight and secure , the danger of your child suffering personal injury in the event of an accident may be increased .
|
system .
If it is hard to install the child restraint system because the anchorage cover returns to the original position , press the anchorage cover to the seat cushion until it is flat .
|
1
Seat , Seatbelt and SRS Airbags
|
|||||
|
Other models
2 . You will find “ ” marks at the bottoms of the rear seatback . These marks indicate the positions of the lower anchorages ( bars ).
|
Peel off the anchorage cover completely from the selected side of the rear seatback to expose the anchorages ( bars ) to be used for installation of the child restraint |
3 . If the child restraint system makes contact with the head restraint of the rear seating position where the child restraint system is to be installed , raise the head restraint to the extended position . If the child restraint system still makes contact , remove the head restraint . For details , refer to “ Head Restraint Adjustment ” FP46 . |
||||||
– CONTINUED – |
