76
Child Restraint Systems
! Tether anchorages s01ag070102 refer to“ Top Tether Anchorages” FP79.
! To install a child restraint system using lower and tether anchorages s01ag070103
WARNING
Before installing a child restraint system, be sure to confirm that the seatback is securely locked into place. Otherwise, in an accident, serious injury or death could result.
1. Move the seatback back and forth to confirm that it is securely locked into place. – Check that the red colored unlocking marker on the lock release button is not visible. For details, refer to“ Folding Down the Rear Seatback” FP43.

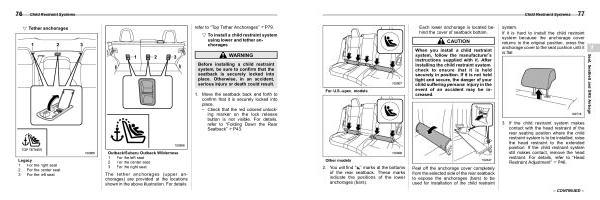

Legacy 1 For the right seat 2 For the center seat 3 For the left seat
Outback / Subaru Outback Wilderness 1 For the left seat 2 For the center seat 3 For the right seat
The tether anchorages( upper anchorages) are provided at the locations shown in the above illustration. For details,
