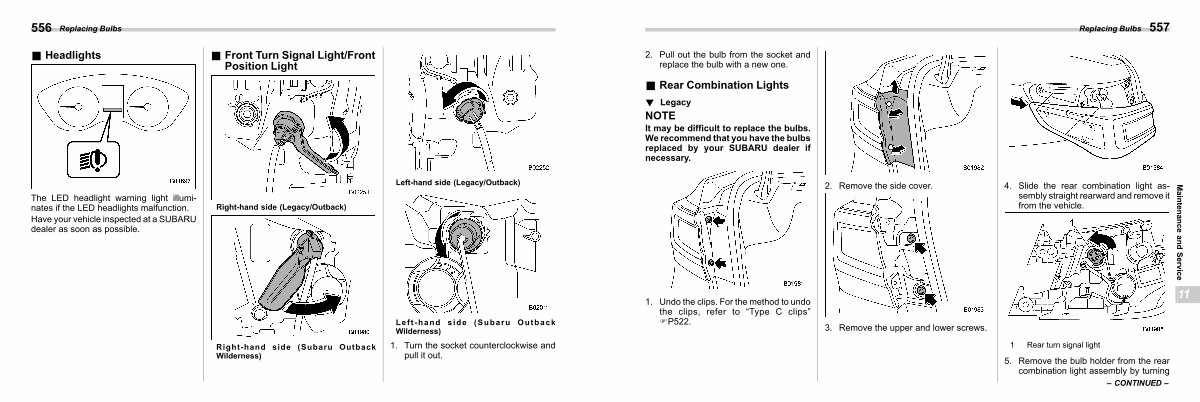

Replacing Bulbs 557
2. Pull out the bulb from the socket and replace the bulb with a new one.
& Rear Combination Lights s11be05
! Legacy s11be0501
NOTE
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
1. Undo the clips. For the method to undo the clips, refer to“ Type C clips” FP522.
2. Remove the side cover.
3. Remove the upper and lower screws.
4. Slide the rear combination light assembly straight rearward and remove it from the vehicle.
1 Rear turn signal light
5. Remove the bulb holder from the rear combination light assembly by turning
– CONTINUED –
Maintenance and Service
11
