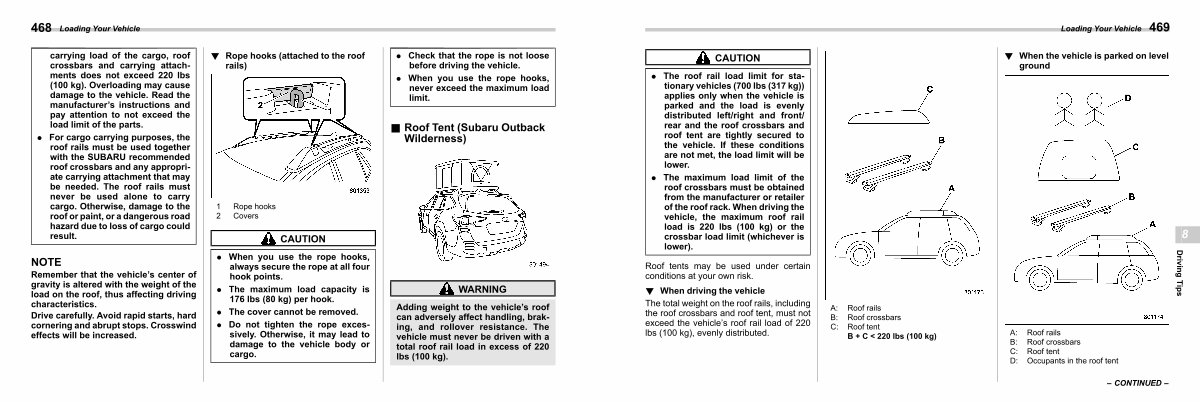

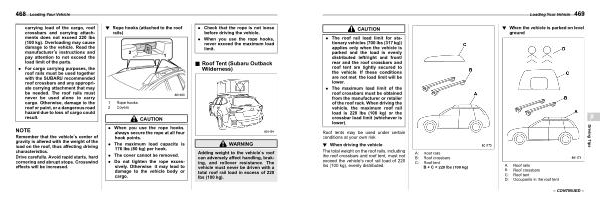

Loading Your Vehicle 469 |
|||||||||||||
|
CAUTION
. The roof rail load limit for stationary vehicles( 700 lbs( 317 kg)) applies only when the vehicle is parked and the load is evenly distributed left / right and front / rear and the roof crossbars and roof tent are tightly secured to the vehicle. If these conditions are not met, the load limit will be lower.
. The maximum load limit of the roof crossbars must be obtained from the manufacturer or retailer of the roof rack. When driving the vehicle, the maximum roof rail load is 220 lbs( 100 kg) or the crossbar load limit( whichever is lower).
Roof tents may be used under certain conditions at your own risk.
! When driving the vehicle s08aj1401
The total weight on the roof rails, including the roof crossbars and roof tent, must not exceed the vehicle’ s roof rail load of 220 lbs( 100 kg), evenly distributed.
|
A: B: C: |
Roof rails Roof crossbars Roof tent B + C < 220 lbs( 100 kg) |
! When the vehicle is parked on level ground s08aj1402
A: B: C: D:
Roof rails Roof crossbars Roof tent Occupants in the roof tent
|
8
Driving Tips
|
|||||||||
– CONTINUED – |
