466

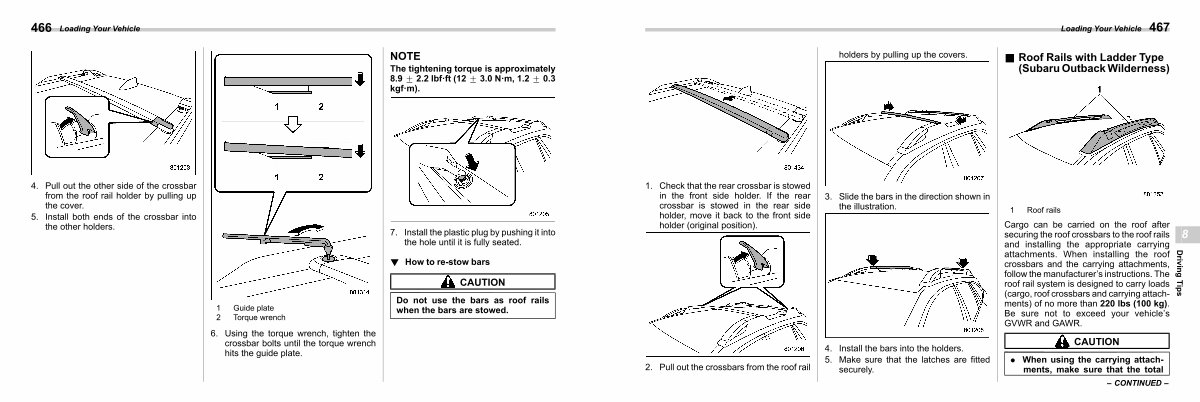

Loading Your Vehicle
NOTE
The tightening torque is approximately 8.9 + 2.2 lbf · ft( 12 + 3.0 N · m, 1.2 + 0.3 kgf · m).
4. Pull out the other side of the crossbar from the roof rail holder by pulling up the cover.
5. Install both ends of the crossbar into the other holders.
7. Install the plastic plug by pushing it into the hole until it is fully seated.
1 Guide plate 2 Torque wrench
6. Using the torque wrench, tighten the crossbar bolts until the torque wrench hits the guide plate.
! How to re-stow bars CAUTION s08aj0803
Do not use the bars as roof rails when the bars are stowed.
