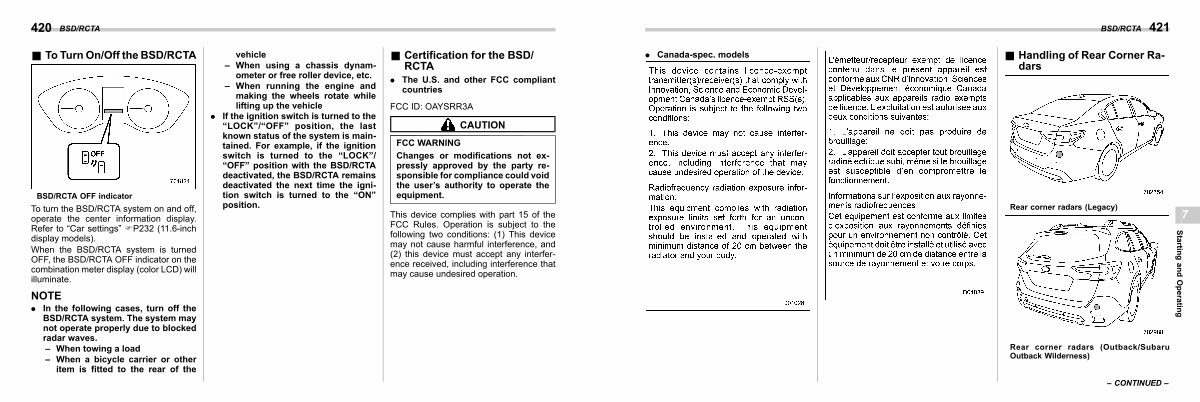

420
BSD / RCTA
& To Turn On / Off the BSD / RCTA s07bm09
BSD / RCTA OFF indicator
To turn the BSD / RCTA system on and off, operate the center information display. Refer to“ Car settings” FP232( 11.6-inch display models).
When the BSD / RCTA system is turned OFF, the BSD / RCTA OFF indicator on the combination meter display( color LCD) will illuminate.
NOTE
. In the following cases, turn off the BSD / RCTA system. The system may not operate properly due to blocked radar waves. – When towing a load – When a bicycle carrier or other item is fitted to the rear of the vehicle – When using a chassis dynamometer or free roller device, etc.
– When running the engine and making the wheels rotate while lifting up the vehicle
. If the ignition switch is turned to the“ LOCK”/“ OFF” position, the last known status of the system is maintained. For example, if the ignition switch is turned to the“ LOCK”/“ OFF” position with the BSD / RCTA deactivated, the BSD / RCTA remains deactivated the next time the ignition switch is turned to the“ ON” position.
& Certification for the BSD / RCTA s07bm06
. The U. S. and other FCC compliant countries
FCC ID: OAYSRR3A CAUTION
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:( 1) This device may not cause harmful interference, and( 2) this device must accept any interference received, including interference that may cause undesired operation.
