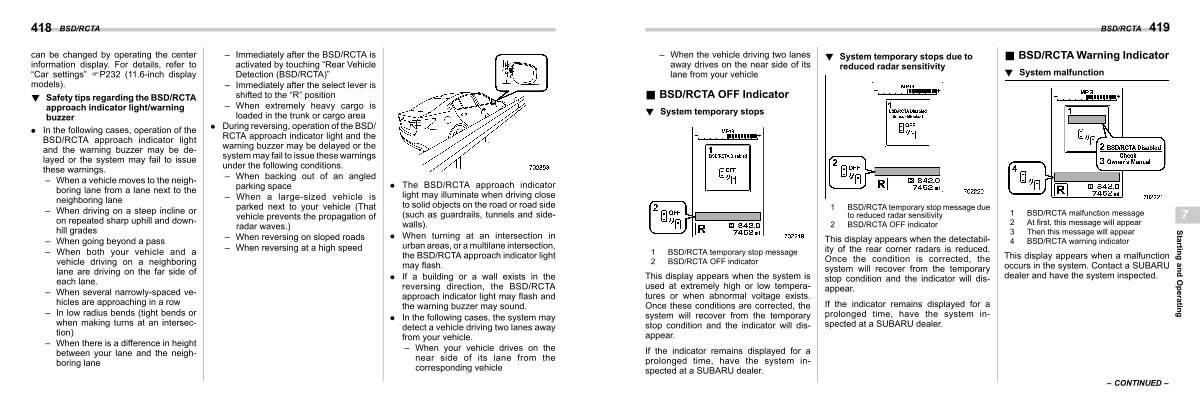

BSD / RCTA 419 |
|||
– When the vehicle driving two lanes away drives on the near side of its lane from your vehicle |
! System temporary stops due to reduced radar sensitivity s07bm0802 |
& BSD / RCTA Warning Indicator s07bm04
! System malfunction s07bm0403
|
|
|
& BSD / RCTA OFF Indicator s07bm08
! System temporary stops s07bm0801
|
|||
|
1 BSD / RCTA temporary stop message 2 BSD / RCTA OFF indicator
This display appears when the system is used at extremely high or low temperatures or when abnormal voltage exists. Once these conditions are corrected, the system will recover from the temporary stop condition and the indicator will disappear.
|
1 BSD / RCTA temporary stop message due to reduced radar sensitivity
2 BSD / RCTA OFF indicator
This display appears when the detectability of the rear corner radars is reduced. Once the condition is corrected, the system will recover from the temporary stop condition and the indicator will disappear.
If the indicator remains displayed for a prolonged time, have the system inspected at a SUBARU dealer.
|
1 BSD / RCTA malfunction message 2 At first, this message will appear 3 Then this message will appear 4 BSD / RCTA warning indicator
This display appears when a malfunction occurs in the system. Contact a SUBARU dealer and have the system inspected.
|
7
Starting and Operating
|
If the indicator remains displayed for a prolonged time, have the system inspected at a SUBARU dealer. |
– CONTINUED – |
