Also, the image from the rear view camera looks shorter than the actual distance. |
projection on its upper part such as a sign pole behind the vehicle, the projection cannot be seen on the screen. |
||
|
& Help Lines s07br03

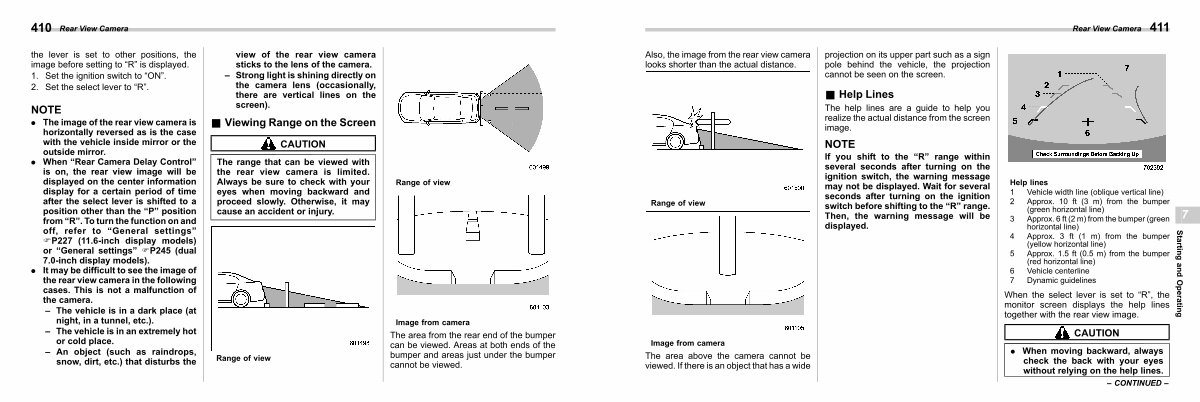

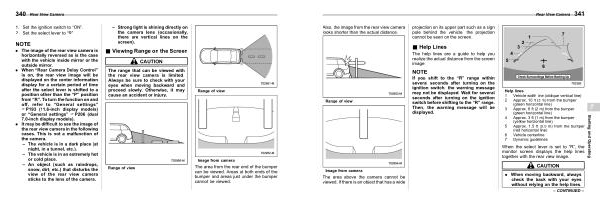

The help lines are a guide to help you realize the actual distance from the screen image.
NOTE
If you shift to the“ R” range within several seconds after turning on the ignition switch, the warning message may not be displayed. Wait for several seconds after turning on the ignition switch before shifting to the“ R” range. Then, the warning message will be displayed.
|
||||||
Range of view |
Help lines 1 Vehicle width line( oblique vertical line)
2 Approx. 10 ft( 3 m) from the bumper( green horizontal line)
3 Approx. 6 ft( 2 m) from the bumper( green horizontal line)
4 Approx. 3 ft( 1 m) from the bumper( yellow horizontal line)
5 Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
6 Vehicle centerline 7 Dynamic guidelines
When the select lever is set to“ R”, the monitor screen displays the help lines together with the rear view image.
|
7
Starting and Operating
|
||||
|
Image from camera
The area above the camera cannot be viewed. If there is an object that has a wide
|
