274

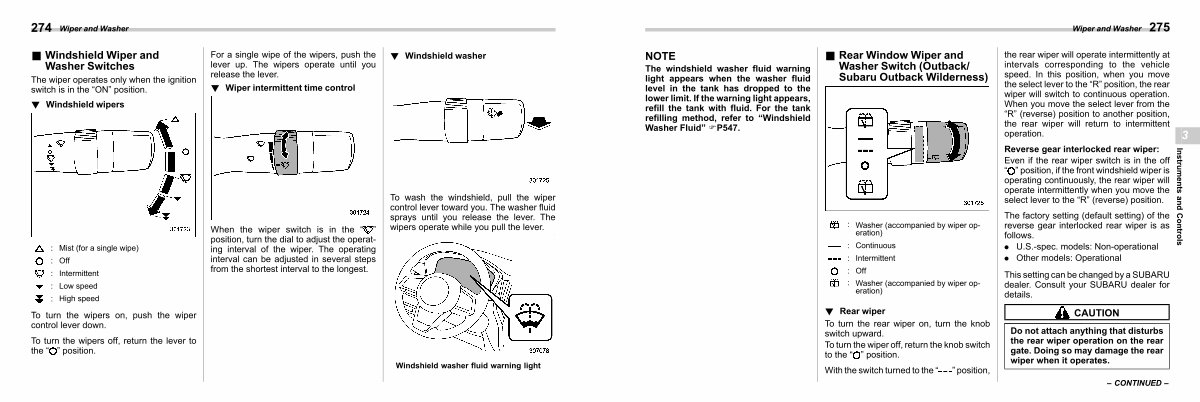

Wiper and Washer
|
& Windshield Wiper and Washer Switches s03am01
The wiper operates only when the ignition switch is in the“ ON” position.
! Windshield wipers
|
|
|
s03am0101 |
For a single wipe of the wipers, push the lever up. The wipers operate until you release the lever.
! Wiper intermittent time control s03am0103
|
|
|
! Windshield washer |
s03am0104 |
: Mist( for a single wipe): Off: Intermittent: Low speed: High speed
To turn the wipers on, push the wiper control lever down.
To turn the wipers off, return the lever to the“” position.
When the wiper switch is in the“” position, turn the dial to adjust the operating interval of the wiper. The operating interval can be adjusted in several steps from the shortest interval to the longest.
To wash the windshield, pull the wiper control lever toward you. The washer fluid sprays until you release the lever. The wipers operate while you pull the lever.
Windshield washer fluid warning light
