244
Center Information Display( CID)
Oil Filter change reminder:
The setting procedure is the same as the“ Engine Oil” reminder, but touch the“ Oil Filter” item in step 2.
Tires rotation reminder:
The setting procedure is the same as the“ Engine Oil” reminder, but touch the“ Tires” item in step 2.
Maintenance Schedule setting:
The setting procedure is the same as the“ Engine Oil” reminder, but touch the“ Maintenance Schedule” item in step 2.
NOTE
. Touch“ Reset” to reset each setting.. Touch“ Default” to revert to the default value.
. For details about the“ Auto”, refer to the Owner’ s Manual supplement for“ SUBARU STARLINK Safety and Security”.
& Dual 7.0-Inch Display Models( If Equipped) s03bs06
NOTE
For 11.6-inch display models, refer to“ 11.6-Inch Display Models” FP218.

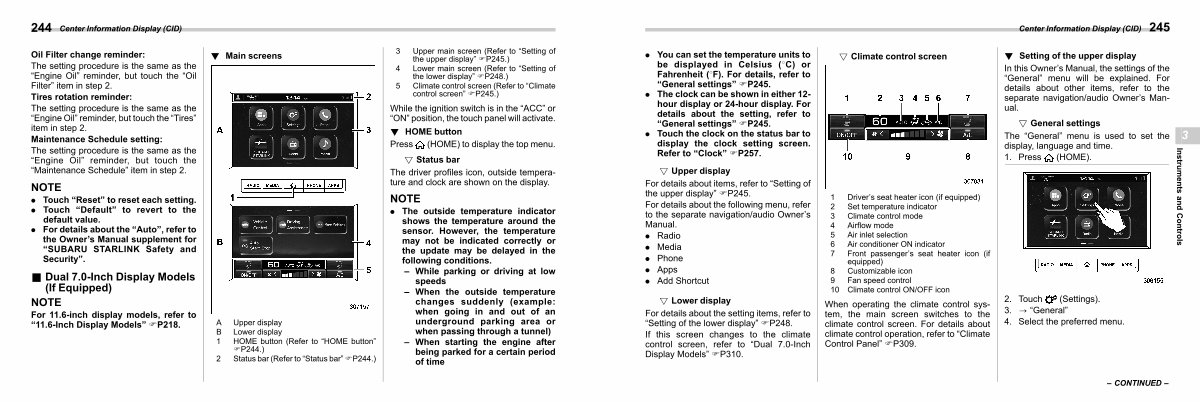

! Main screens s03bs0601
A Upper display B Lower display 1 HOME button( Refer to“ HOME button”
FP244.)
2 Status bar( Refer to“ Status bar” FP244.)
3 Upper main screen( Refer to“ Setting of the upper display” FP245.)
4 Lower main screen( Refer to“ Setting of the lower display” FP248.)
5 Climate control screen( Refer to“ Climate control screen” FP245.)
While the ignition switch is in the“ ACC” or“ ON” position, the touch panel will activate.
! HOME button s03bs0609
Press( HOME) to display the top menu.
! Status bar s03bs060901
The driver profiles icon, outside temperature and clock are shown on the display.
NOTE
. The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions. – While parking or driving at low speeds
– When the outside temperature changes suddenly( example: when going in and out of an underground parking area or when passing through a tunnel)
– When starting the engine after being parked for a certain period of time
