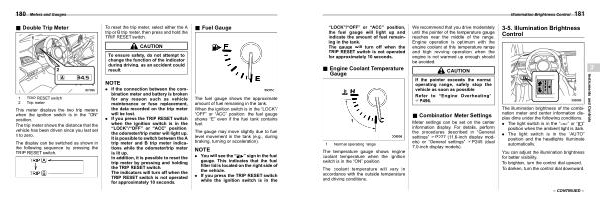

180
Meters and Gauges
& Double Trip Meter |
s03ad05 |
To reset the trip meter , select either the A trip or B trip meter , then press and hold the TRIP RESET switch . |
& Fuel Gauge |
s03ad07 |
|
|
CAUTION |
|
|
|
|
To ensure safety , do not attempt to change the function of the indicator during driving , as an accident could result . |
|
|
1 TRIP RESET switch 2 Trip meter
This meter displays the two trip meters when the ignition switch is in the “ ON ” position .
The trip meter shows the distance that the vehicle has been driven since you last set it to zero .
The display can be switched as shown in the following sequence by pressing the TRIP RESET switch .
NOTE
. If the connection between the combination meter and battery is broken for any reason such as vehicle maintenance or fuse replacement , the data recorded on the trip meter will be lost .
. If you press the TRIP RESET switch when the ignition switch is in the “ LOCK ”/“ OFF ” or “ ACC ” position , the odometer / trip meter will light up . It is possible to switch between the A trip meter and B trip meter indications while the odometer / trip meter is lit up . In addition , it is possible to reset the trip meter by pressing and holding the TRIP RESET switch . The indicators will turn off when the TRIP RESET switch is not operated for approximately 10 seconds .
The fuel gauge shows the approximate amount of fuel remaining in the tank .
When the ignition switch is in the “ LOCK ”/ “ OFF ” or “ ACC ” position , the fuel gauge shows “ E ” even if the fuel tank contains fuel .
The gauge may move slightly due to fuel level movement in the tank ( e . g ., during braking , turning or acceleration ).
NOTE
. You will see the “ ” sign in the fuel gauge . This indicates that the fuel filler lid is located on the right side of the vehicle .
. If you press the TRIP RESET switch while the ignition switch is in the
