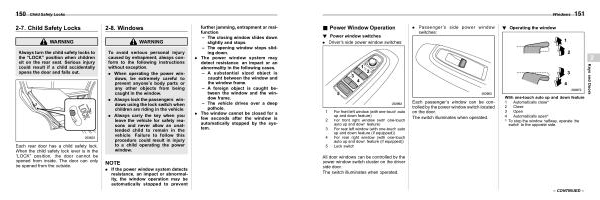

& Power Window Operation s02ah07
! Power window switches s02ah0701
. Driver ’ s side power window switches :
|
. Passenger ’ s side power window switches : |
! Operating the window |
s02ah0702 |
2 |
||||||||
|
1 For front left window ( with one-touch auto up and down feature )
2 For front right window ( with one-touch auto up and down feature )
3 For rear left window ( with one-touch auto up and down feature ( if equipped ))
4 For rear right window ( with one-touch auto up and down feature ( if equipped ))
5 Lock switch
|
Each passenger ’ s window can be controlled by the power window switch located on the door .
The switch illuminates when operated .
|
With one-touch auto up and down feature 1 Automatically close * 2 Close 3 Open 4 Automatically open * *: To stop the window halfway , operate the switch to the opposite side . |
Keys and Doors |
|||||
|
All door windows can be controlled by the power window switch cluster on the driver side door .
The switch illuminates when operated .
|
||||||||
– CONTINUED – |
