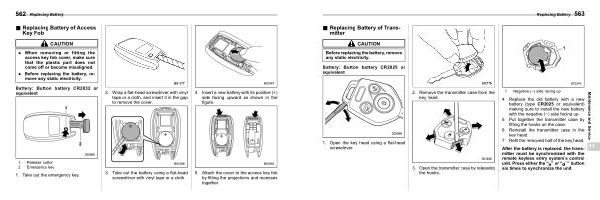

& Replacing Battery of Transmitter s11bk02 |
||||||||
CAUTION |
||||||||
Before replacing the battery , remove any static electricity . |
||||||||
Battery : Button battery CR2025 or equivalent |
||||||||
1 . Open the key head using a flat-head screwdriver . |
2 . Remove the transmitter case from the key head .
3 . Open the transmitter case by releasing the hooks .
|
1 Negative ( − ) side facing up
4 . Replace the old battery with a new battery ( type CR2025 or equivalent ) making sure to install the new battery with the negative ( − ) side facing up .
5 . Put together the transmitter case by fitting the hooks on the case .
6 . Reinstall the transmitter case in the key head .
7 . Refit the removed half of the key head .
After the battery is replaced , the transmitter must be synchronized with the remote keyless entry system ’ s control unit . Press either the “ ” or “ ” button six times to synchronize the unit .
|
Maintenance and Service
11
|
