562

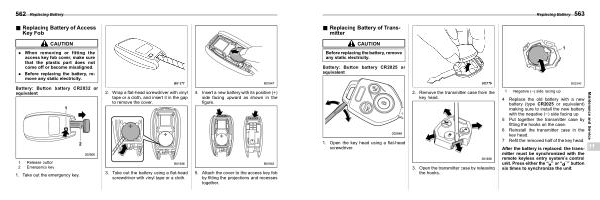

Replacing Battery
& Replacing Battery of Access Key Fob s11bk01
CAUTION
. When removing or fitting the access key fob cover , make sure that the plastic part does not come off or become misaligned .
. Before replacing the battery , remove any static electricity .
Battery : Button battery CR2032 or equivalent
2 . Wrap a flat-head screwdriver with vinyl tape or a cloth , and insert it in the gap to remove the cover .
4 . Insert a new battery with its positive (+) side facing upward as shown in the figure .
1 Release button 2 Emergency key
1 . Take out the emergency key .
3 . Take out the battery using a flat-head screwdriver with vinyl tape or a cloth .
5 . Attach the cover to the access key fob by fitting the projections and recesses together .
