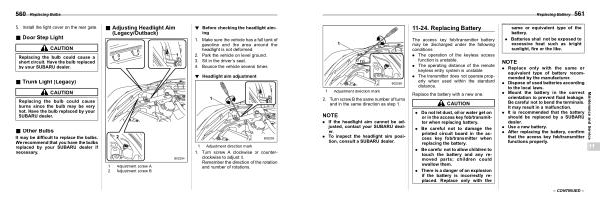

Subaru Outback Manuals 2024 Outback Owner's Manual | Page 568

560
Replacing Bulbs
5 . Install the light cover on the rear gate .
& Door Step Light
CAUTION
s11be10
Replacing the bulb could cause a short circuit . Have the bulb replaced by your SUBARU dealer .
& Adjusting Headlight Aim ( Legacy / Outback )
s11be57
! Before checking the headlight aiming s11be5701
1 . Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed .
2 . Park the vehicle on level ground . 3 . Sit in the driver ’ s seat . 4 . Bounce the vehicle several times .
& Trunk Light ( Legacy ) CAUTION s11be12
Replacing the bulb could cause burns since the bulb may be very hot . Have the bulb replaced by your SUBARU dealer .
! Headlight aim adjustment s11be5702
& Other Bulbs s11be29
It may be difficult to replace the bulbs . We recommend that you have the bulbs replaced by your SUBARU dealer if necessary .
1 Adjustment screw A 2 Adjustment screw B
1 Adjustment direction mark
1 . Turn screw A clockwise or counterclockwise to adjust it . Remember the direction of the rotation and number of rotations .
