490

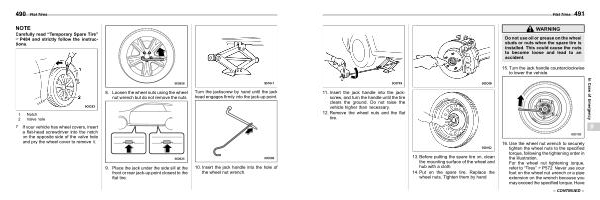

Flat Tires
NOTE
Carefully read “ Temporary Spare Tire ” FP484 and strictly follow the instructions .
8 . Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts .
Turn the jackscrew by hand until the jack head engages firmly into the jack-up point .
1 Notch 2 Valve hole
7 . If your vehicle has wheel covers , insert a flat-head screwdriver into the notch on the opposite side of the valve hole and pry the wheel cover to remove it .
9 . Place the jack under the side sill at the front or rear jack-up point closest to the flat tire .
10 . Insert the jack handle into the hole of the wheel nut wrench .
