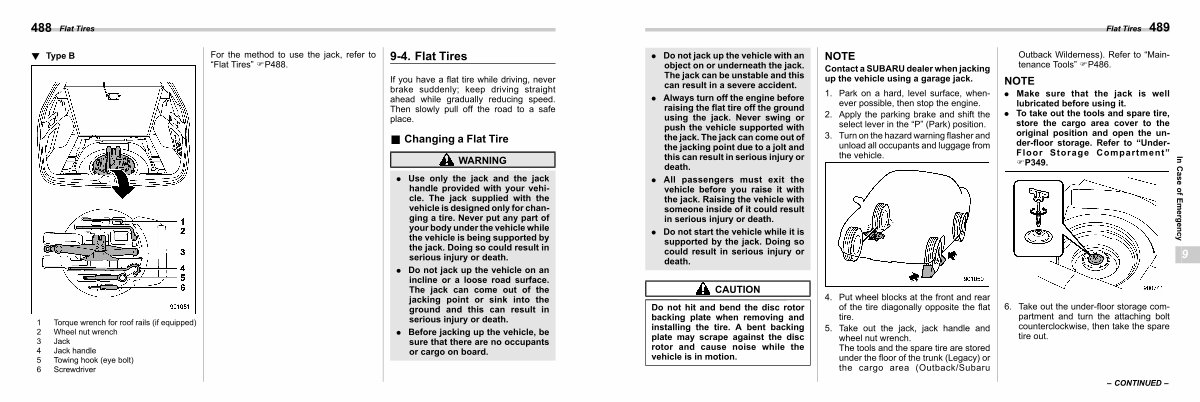

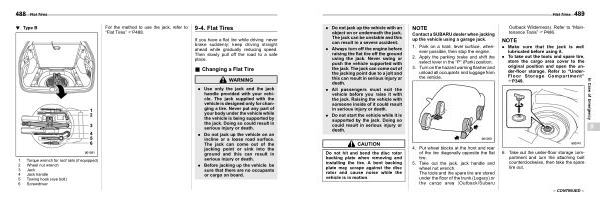

Flat Tires 489 |
||||||||
|
. Do not jack up the vehicle with an object on or underneath the jack . The jack can be unstable and this can result in a severe accident .
. Always turn off the engine before raising the flat tire off the ground using the jack . Never swing or push the vehicle supported with the jack . The jack can come out of the jacking point due to a jolt and this can result in serious injury or death .
. All passengers must exit the vehicle before you raise it with the jack . Raising the vehicle with someone inside of it could result in serious injury or death .
. Do not start the vehicle while it is supported by the jack . Doing so could result in serious injury or death .
|
NOTE
Contact a SUBARU dealer when jacking up the vehicle using a garage jack .
1 . Park on a hard , level surface , whenever possible , then stop the engine .
2 . Apply the parking brake and shift the select lever in the “ P ” ( Park ) position .
3 . Turn on the hazard warning flasher and unload all occupants and luggage from the vehicle .
|
Outback Wilderness ). Refer to “ Maintenance Tools ” FP486 .
NOTE
. Make sure that the jack is well lubricated before using it .
. To take out the tools and spare tire , store the cargo area cover to the original position and open the under-floor storage . Refer to “ Under- Floor Storage Compartment ” FP349 .
|
In Case of Emergency
9
|
|||||
|
CAUTION
Do not hit and bend the disc rotor backing plate when removing and installing the tire . A bent backing plate may scrape against the disc rotor and cause noise while the vehicle is in motion .
|
4 . Put wheel blocks at the front and rear of the tire diagonally opposite the flat tire .
5 . Take out the jack , jack handle and wheel nut wrench . The tools and the spare tire are stored under the floor of the trunk ( Legacy ) or the cargo area ( Outback / Subaru
|
6 . Take out the under-floor storage compartment and turn the attaching bolt counterclockwise , then take the spare tire out . |
||||||
– CONTINUED – |
