3 |
||||||||
|

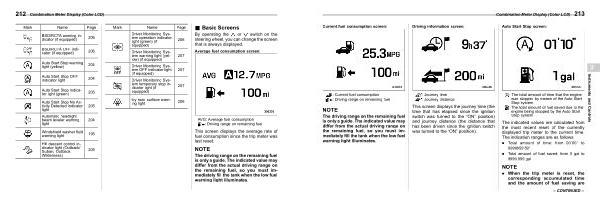

: Current fuel consumption : Driving range on remaining fuel
NOTE
The driving range on the remaining fuel is only a guide . The indicated value may differ from the actual driving range on the remaining fuel , so you must immediately fill the tank when the low fuel warning light illuminates .
|
: Journey time : Journey distance
This screen displays the journey time ( the time that has elapsed since the ignition switch was turned to the “ ON ” position ) and journey distance ( the distance that has been driven since the ignition switch was turned to the “ ON ” position ).
|
: The total amount of time that the engine was stopped by means of the Auto Start Stop system
: The total amount of fuel saved due to the engine being stopped by the Auto Start Stop system
The indicated values are calculated from the most recent reset of the currently displayed trip meter to the current time . The indication ranges are as follows .
. Total amount of time : from 00 ’ 00 @ to 9999h59 ’ 59 @
. Total amount of fuel saved : from 0 gal to 9999.999 gal
|
Instruments and Controls |
|||||
|
NOTE
. When the trip meter is reset , the corresponding accumulated time and the amount of fuel saving are
|
||||||||
– CONTINUED – |
