84

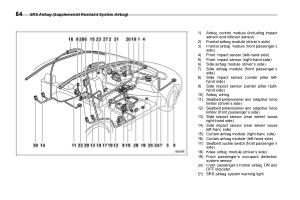

SRS Airbag (Supplemental Restraint System Airbag)
1) Airbag control module (including impact
sensor and rollover sensor)
2) Frontal airbag module (driver’s side)
3) Frontal airbag module (front passenger’s
side)
4) Front impact sensor (left-hand side)
5) Front impact sensor (right-hand side)
6) Side airbag module (driver’s side)
7) Side airbag module (front passenger’s
side)
8) Side impact sensor (center pillar lefthand
side)
9) Side impact sensor (center pillar righthand
side)
10) Airbag wiring
11) Seatbelt pretensioner and adaptive force
limiter (driver’s side)
12) Seatbelt pretensioner and adaptive force
limiter (front passenger’s side)
13) Side impact sensor (rear wheel house
right-hand side)
14) Side impact sensor (rear wheel house
left-hand side)
15) Curtain airbag module (right-hand side)
16) Curtain airbag module (left-hand side)
17) Seatbelt buckle switch (front passenger’s
side)
18) Knee airbag module (driver’s side)
19) Front passenger’s occupant detection
system sensor
20) Front passenger’s frontal airbag ON and
OFF indicator
21) SRS airbag system warning light
