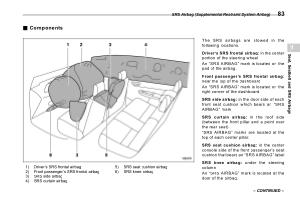

SRS Airbag (Supplemental Restraint System Airbag) 83
& Components
s01ah11
1) Driver’s SRS frontal airbag
2) Front passenger’s SRS frontal airbag
3) SRS side airbag
4) SRS curtain airbag
5) SRS seat cushion airbag
6) SRS knee airbag
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: in the center
portion of the steering wheel
An “SRS AIRBAG” mark is located on the
pad of the airbag.
Front passenger’s SRS frontal airbag:
near the top of the dashboard
An “SRS AIRBAG” mark is located on the
right corner of the dashboard.
SRS side airbag: in the door side of each
front seat cushion which bears an “SRS
AIRBAG” mark
SRS curtain airbag: in the roof side
(between the front pillar and a point over
the rear seat)
“SRS AIRBAG” marks are located at the
top of each center pillar.
SRS seat cushion airbag: in the center
console side of the front passenger’s seat
cushion that bears an “SRS AIRBAG” label
SRS knee airbag: under the steering
column
An “SRS AIRBAG” mark is located at the
door of the airbag.
– CONTINUED –
1
Seat, Seatbelt and SRS Airbags
