144
Windows
the window operation may be automatically
stopped to prevent further jamming,
entrapment or malfunction.
– The closing window slides down
slightly and stops.
– The opening window stops sliding
down.
. The power window system may
detect resistance, an impact or an
abnormality in the following cases.
– A substantial sized object is
caught between the window and
the window frame.
– A foreign object is caught between
the window and the window
frame.
– The vehicle drives over a deep
pothole.
. The window cannot be closed for a
few seconds after the window is automatically
stopped by the system.

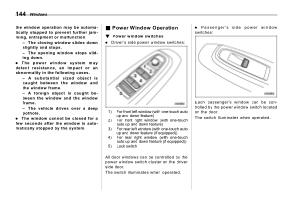

& Power Window Operation
s02ah07
! Power window switches
s02ah0701
. Driver’s side power window switches:
1) For front left window (with one-touch auto
up and down feature)
2) For front right window (with one-touch
auto up and down feature)
3) For rear left window (with one-touch auto
up and down feature (if equipped))
4) For rear right window (with one-touch
auto up and down feature (if equipped))
5) Lock switch
All door windows can be controlled by the
power window switch cluster on the driver
side door.
The switch illuminates when operated.
. Passenger’s side power window
switches:
Each passenger’s window can be controlled
by the power window switch located
on the door.
The switch illuminates when operated.
