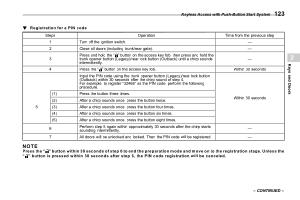

Keyless Access with Push-Button Start System 123
! Registration for a PIN code
s02ap2102
Steps Operation Time from the previous step
1 Turn off the ignition switch. —
2 Close all doors (including trunk/rear gate). —
3
Press and hold the “ ” button on the access key fob, then press and hold the
trunk opener button (Legacy)/rear lock button (Outback) until a chirp sounds
intermittently.
—
4 Press the “ ” button on the access key fob. Within 30 seconds
Input the PIN code using the trunk opener button (Legacy)/rear lock button
(Outback) within 30 seconds after the chirp sound of step 4.
For example, to register “32468” as the PIN code, perform the following
procedure.
(1) Press the button three times.
(2) After a chirp sounds once, press the button twice.
Within 30 seconds
5 (3) After a chirp sounds once, press the button four times.
(4) After a chirp sounds once, press the button six times.
(5) After a chirp sounds once, press the button eight times.
6
Perform step 5 again within approximately 30 seconds after the chirp starts
sounding intermittently.
—
7 All doors will be unlocked and locked. Then the PIN code will be registered. —
NOTE
Press the “ ” button within 30 seconds of step 6 to end the preparation mode and move on to the registration stage. Unless the
“ ” button is pressed within 30 seconds after step 6, the PIN code registration will be canceled.
2
Keys and Doors
– CONTINUED –
