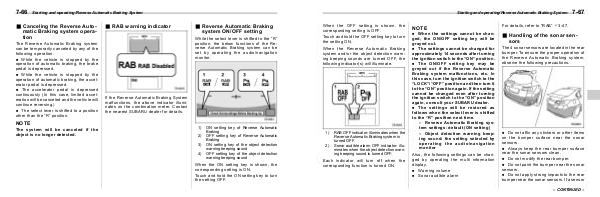

7-66
Starting and operating/Reverse Automatic Braking System
& Canceling the Reverse Auto-
matic Braking system opera-
tion
& RAB warning indicator
S07BN07
S07BN05
While the select lever is shifted to the “R”
position, the below functions of the Re-
verse Automatic Braking system can be
set by operating the audio/navigation
monitor.
S07BN04
The Reverse Automatic Braking system
can be temporarily canceled by any of the
following operation.
. While the vehicle is stopped by the
operation of automatic braking, the brake
pedal is depressed.
. While the vehicle is stopped by the
operation of automatic braking, the accel-
erator pedal is depressed.
. The accelerator pedal is depressed
continuously (In this case, limited accel-
eration will be canceled and the vehicle will
continue reversing.)
. The select lever is shifted to a position
other than the “R” position.
NOTE
The system will be canceled if the
object is no longer detected.
& Reverse Automatic Braking
system ON/OFF setting
If the Reverse Automatic Braking System
malfunctions, the above indicator illumi-
nates on the combination meter. Contact
the nearest SUBARU dealer for details.
1)
2)
3)
4)
ON setting key of Reverse Automatic
Braking
OFF setting key of Reverse Automatic
Braking
ON setting key of the object detection
warning beeping sound
OFF setting key of the object detection
warning beeping sound
When the ON setting key is shown, the
corresponding setting is ON.
Touch and hold the ON setting key to turn
the setting OFF.
