7-26
Starting and operating/Continuously variable transmission
system) may be malfunctioning. Contact a
SUBARU dealer for an inspection as soon
as possible.
If the select lever does not move after
performing the above procedure, refer to
“Shift lock release using the shift lock
release portion” F7-26.

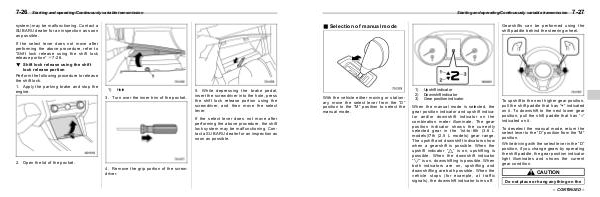

! Shift lock release using the shift
lock release portion
S07BG0402
Perform the following procedure to release
the shift lock.
1. Apply the parking brake and stop the
engine.
1)
Hole
3. Turn over the inner trim of the pocket.
5. While depressing the brake pedal,
insert the screwdriver into the hole, press
the shift lock release portion using the
screwdriver, and then move the select
lever.
If the select lever does not move after
performing the above procedure, the shift
lock system may be malfunctioning. Con-
tact a SUBARU dealer for an inspection as
soon as possible.
2. Open the lid of the pocket.
4. Remove the grip portion of the screw-
driver.
