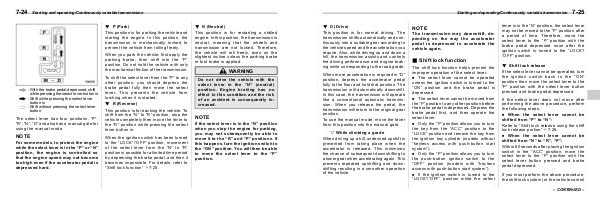

Starting and operating/Continuously variable transmission
! D (Drive)
S07BG0104
This position is for normal driving. The
transmission shifts automatically and con-
tinuously into a suitable gear according to
the vehicle speed and the acceleration you
require. Also, while driving up and down a
hill, the transmission assists and controls
the driving performance and engine brak-
ing while corresponding to the road grade.
When more acceleration is required in “D”
position, depress the accelerator pedal
fully to the floor and hold that position. The
transmission will automatically downshift.
In this case, the transmission will operate
like a conventional automatic transmis-
sion. When you release the pedal, the
transmission will return to the original gear
position.
To use the manual mode, move the lever
from this position into the manual gate.
! While climbing a grade
S07BG010401
When driving up a hill, undesired upshift is
prevented from taking place when the
accelerator is released. This minimizes
the chance of subsequent downshifting to
a lower gear when accelerating again. This
prevents repeated upshifting and down-
shifting resulting in a smoother operation
of the vehicle.
NOTE
The transmission may downshift, de-
pending on the way the accelerator
pedal is depressed to accelerate the
vehicle again.
7-25
lever is in the “N” position, the select lever
may not be moved to the “P” position after
a period of time. Therefore, move the
select lever to the “P” position with the
brake pedal depressed soon after the
ignition switch is turned to the “LOCK”/
“OFF” position.
& Shift lock function
S07BG04
The shift lock function helps prevent the
improper operation of the select lever.
. The select lever cannot be operated
unless the ignition switch is turned to the
“ON” position and the brake pedal is
depressed.
. The select lever cannot be moved from
the “P” position to any other position before
the brake pedal is depressed. Depress the
brake pedal first, and then operate the
select lever.
. Only the “P” position allows you to turn
the key from the “ACC” position to the
“LOCK” position and remove the key from
the ignition key cylinder (models without
“keyless access with push-button start
system”).
. Only the “P” position allows you to turn
the push-button ignition switch to the
“OFF” position (models with “keyless
access with push-button start system”).
. If the ignition switch is turned to the
“LOCK”/“OFF” position while the select
! Shift lock release
S07BG0401
If the select lever cannot be operated, turn
the ignition switch back to the “ON”
position then move the select lever to the
“P” position with the select lever button
pressed and brake pedal depressed.
If the select lever does not move after
performing the above procedure, perform
the following steps.
. When the select lever cannot be
shifted from “P” to “N”:
Refer to “Shift lock release using the shift
lock release portion” F7-26.
. When the select lever cannot be
shifted from “N” to “R”, “P”:
Within 60 seconds after placing the ignition
switch in the “ACC” position, move the
select lever to the “P” position with the
select lever button pressed and brake
pedal depressed.
If you must perform the above procedure,
the shift lock system (or the vehicle control
– CONTINUED –
