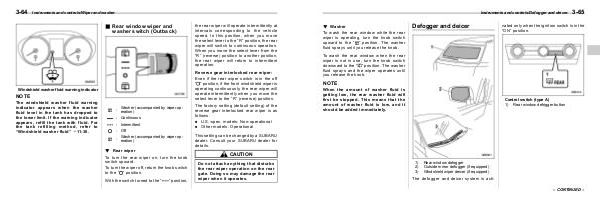

3-64
Instruments and controls/Wiper and washer
& Rear window wiper and
washer switch (Outback)
S03AM02
Reverse gear interlocked rear wiper:
Even if the rear wiper switch is in the off
“ ” position, if the front windshield wiper is
operating continuously, the rear wiper will
operate intermittently when you move the
select lever to the “R” (reverse) position.
Windshield washer fluid warning indicator
NOTE
The windshield washer fluid warning
indicator appears when the washer
fluid level in the tank has dropped to
the lower limit. If the warning indicator
appears, refill the tank with fluid. For
the tank refilling method, refer to
“Windshield washer fluid” F11-30.
the rear wiper will operate intermittently at
intervals corresponding to the vehicle
speed. In this position, when you move
the select lever to the “R” position, the rear
wiper will switch to continuous operation.
When you move the select lever from the
“R” (reverse) position to another position,
the rear wiper will return to intermittent
operation.
(accompanied by wiper op-
: Washer
eration)
: Continuous
: Intermittent
: Off
Washer (accompanied by wiper op-
: eration)
! Rear wiper
S03AM0201
To turn the rear wiper on, turn the knob
switch upward.
To turn the wiper off, return the knob switch
to the “ ” position.
With the switch turned to the “
” position,
The factory setting (default setting) of the
reverse gear interlocked rear wiper is as
follows.
. U.S.-spec. models: Non-operational
. Other models: Operational
This setting can be changed by a SUBARU
dealer. Consult your SUBARU dealer for
details.
CAUTION
Do not attach anything that disturbs
the rear wiper operation on the rear
gate. Doing so may damage the rear
wiper when it operates.
