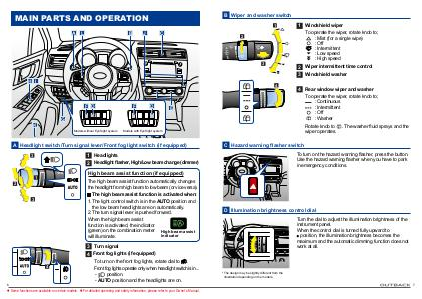

MAIN PARTS AND OPERATION
H I
K |
G |
Models without EyeSight system |
Models with EyeSight system |
A Headlight switch / Turn signal lever / Front fog light switch( if equipped)
2
3
3
1
1 Headlights 2 Headlight flasher, High / Low beam change( dimmer)
High beam assist function( if equipped)
The high beam assist function automatically changes the headlight from high beam to low beam( or vice versa).
The high beam assist function is activated when:
1. The light control switch is in the AUTO position and the low beam headlights are on automatically. 2. The turn signal lever is pushed forward.
When the high beam assist function is activated, the indicator( green) on the combination meter will illuminate.
High beam assist indicator
6
4
3 Turn signal
4 Front fog lights( if equipped) To turn on the front fog lights, rotate dial to. Front fog lights operate only when headlight switch is in...- position.- AUTO position and the headlights are on.
◆ Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’ s Manual.
