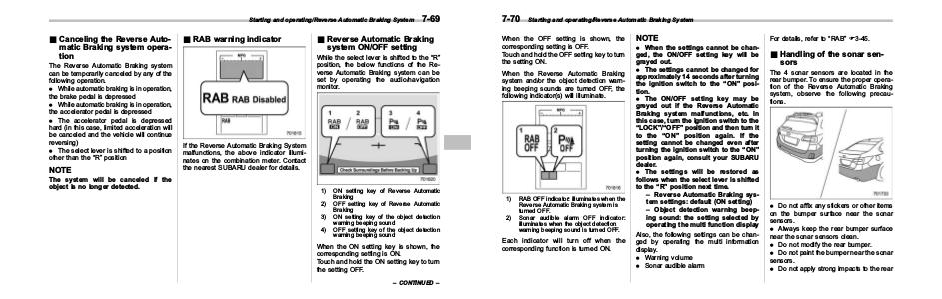

Starting and operating/Reverse Automatic Braking System
& Canceling the Reverse Automatic Braking system operation
The Reverse Automatic Braking system
can be temporarily canceled by any of the
following operation.
. While automatic braking is in operation,
the brake pedal is depressed
. While automatic braking is in operation,
the accelerator pedal is depressed
. The accelerator pedal is depressed
hard (in this case, limited acceleration will
be canceled and the vehicle will continue
reversing)
. The select lever is shifted to a position
other than the “R” position
NOTE
The system will be canceled if the
object is no longer detected.
& RAB warning indicator
7-69
& Reverse Automatic Braking
system ON/OFF setting
While the select lever is shifted to the “R”
position, the below functions of the Reverse Automatic Braking system can be
set by operating the audio/navigation
monitor.
If the Reverse Automatic Braking System
malfunctions, the above indicator illuminates on the combination meter. Contact
the nearest SUBARU dealer for details.
1)
2)
3)
4)
ON setting key of Reverse Automatic
Braking
OFF setting key of Reverse Automatic
Braking
ON setting key of the object detection
warning beeping sound
OFF setting key of the object detection
warning beeping sound
When the ON setting key is shown, the
corresponding setting is ON.
Touch and hold the ON setting key to turn
the setting OFF.
– CONTINUED –
