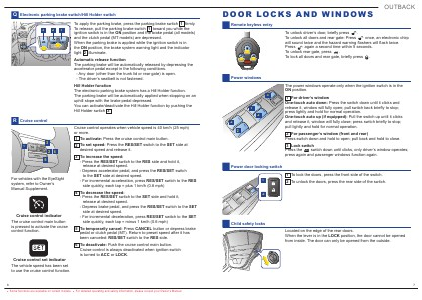

DOOR LOCKS AND WINDOWS
OUTBACK
Remote keyless entry
To unlock driver’s door, briefly press
.
To unlock all doors and rear gate: Press
once, an electronic chirp
will sound twice and the hazard warning flashers will flash twice.
Press
again a second time within 5 seconds.
To unlock rear gate, press
.
To lock all doors and rear gate, briefly press
.
PANIC
Power windows
3
1
2
2
2
The power windows operate only when the ignition switch is in the
ON position.
1 For driver’s window
One-touch auto down: Press the switch down until it clicks and
release it, window will fully open; pull switch back briefly to stop;
press lightly and hold for normal operation.
One-touch auto up (if equipped): Pull the switch up until it clicks
and release it, window will fully close; press switch briefly to stop;
pull lightly and hold for normal operation.
2 For passenger’s window (front and rear)
Press switch down and hold to open; pull back and hold to close.
3 Lock switch
Press the
switch down until clicks, only driver’s window operates;
press again and passenger windows function again.
Power door locking switch
1
1 To lock the doors, press the front side of the switch.
2 To unlock the doors, press the rear side of the switch.
2
Child safety locks
Located on the edge of the rear doors.
When the lever is in the LOCK position, the door cannot be opened
from inside. The door can only be opened from the outside.
7
