Maintenance and service

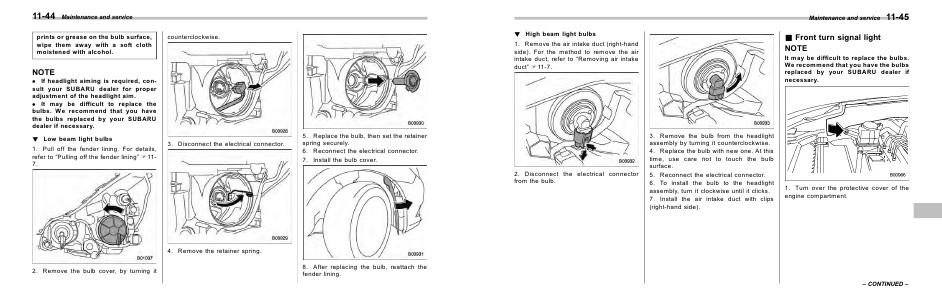

! High beam light bulbs
& Front turn signal light
NOTE
1. Remove the air intake duct (right-hand
side). For the method to remove the air
intake duct, refer to “Removing air intake
duct” F11-7.
2. Disconnect the electrical connector
from the bulb.
11-45
It may be difficult to replace the bulbs.
We recommend that you have the bulbs
replaced by your SUBARU dealer if
necessary.
3. Remove the bulb from the headlight
assembly by turning it counterclockwise.
4. Replace the bulb with new one. At this
time, use care not to touch the bulb
surface.
5. Reconnect the electrical connector.
6. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
7. Install the air intake duct with clips
(right-hand side).
1. Turn over the protective cover of the
engine compartment.
– CONTINUED –
