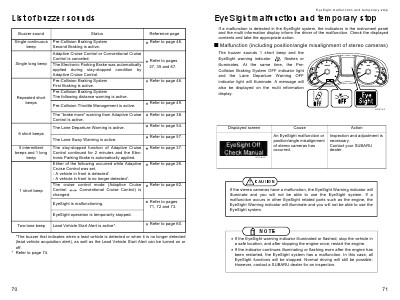

EyeSight malfunction and temporary stop
EyeSight malfunction and temporary stop
If a malfunction is detected in the EyeSight system, the indicators in the instrument panel
and the multi information display inform the driver of the malfunction. Check the displayed
contents and take the appropriate action.
I Malfunction (including position/angle misalignment of stereo cameras)
The buzzer sounds 1 short beep and the
EyeSight warning indicator
flashes or
illuminates. At the same time, the PreCollision Braking System OFF indicator light
and the Lane Departure Warning OFF
indicator light will illuminate. A message will
also be displayed on the multi information
display.
S00543
Displayed screen
Cause
Action
An EyeSight malfunction or
position/angle misalignment
of stereo cameras has
occurred.
Inspection and adjustment is
necessary.
Contact your SUBARU
dealer.
S00699
CAUTION
If the stereo cameras have a malfunction, the EyeSight Warning indicator will
illuminate and you will not be able to use the EyeSight system. If a
malfunction occurs in other EyeSight related parts such as the engine, the
EyeSight Warning indicator will illuminate and you will not be able to use the
EyeSight system.
NOTE
If the EyeSight warning indicator illuminated or flashed, stop the vehicle in
a safe location, and after stopping the engine once, restart the engine.
If the indicator continues illuminating or flashing even after the engine has
been restarted, the EyeSight system has a malfunction. In this case, all
EyeSight functions will be stopped. Normal driving will still be possible.
However, contact a SUBARU dealer for an inspection.
71
